Removing Front Luggage Compartment Trim Panel (Luggage Compartment Liner)

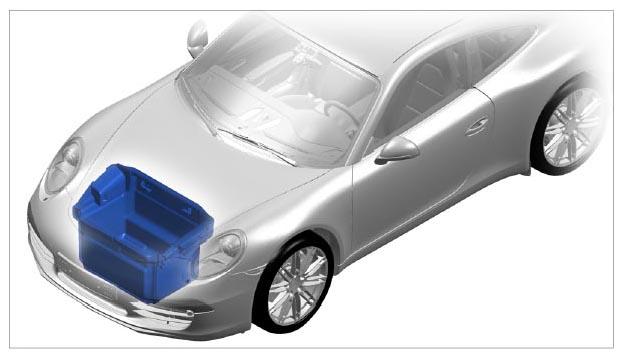

Fig 1: Identifying Front Luggage Compartment Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When removing the trim panel, make sure not to damage any lines or plug connections.

Information

• Only for USA/Canada vehicles.

1. Remove front emergency release. → 556219 REMOVING AND INSTALLING FRONT EMERGENCY RELEASE

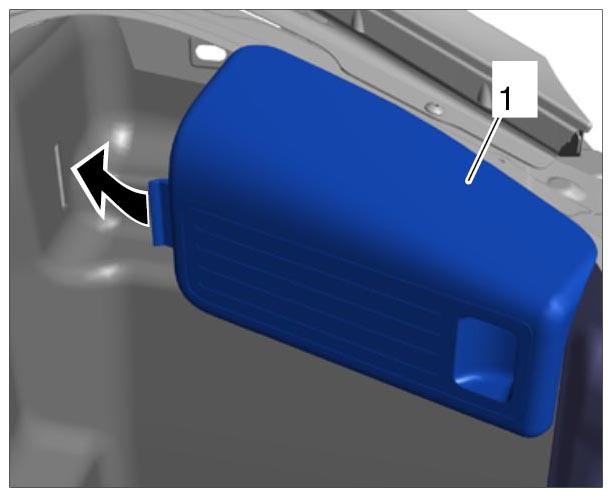

2. Unclip tool kit trim panel at the left -1-  and remove it by pulling it sideways.
   Fig 2: Removing Tool Kit Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove tire repair system trim panel on the right in the same way as for the tool kit.

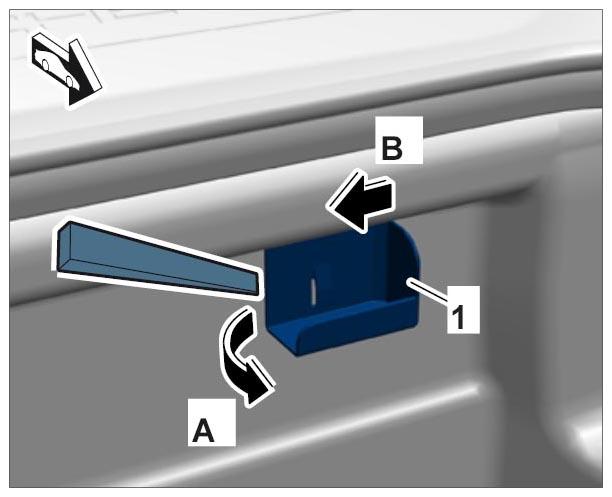

4. Lever out warning triangle holder -1-  using a suitable tool -arrow A-  and push it inwards -arrow B-  .
   Fig 3: Removing Warning Triangle Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

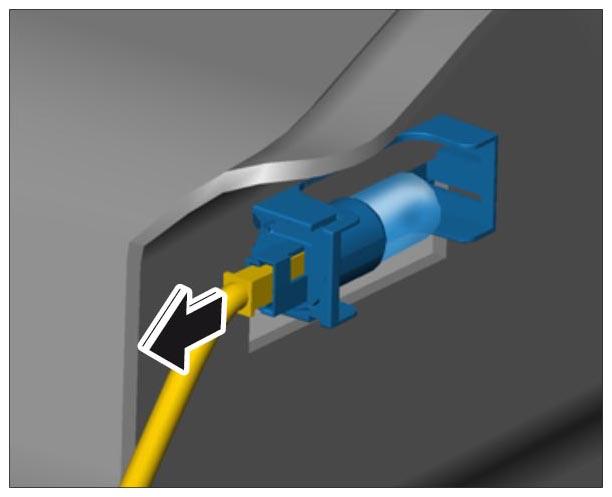

5. Disconnect electric plug connection for luggage compartment light.
   Fig 4: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

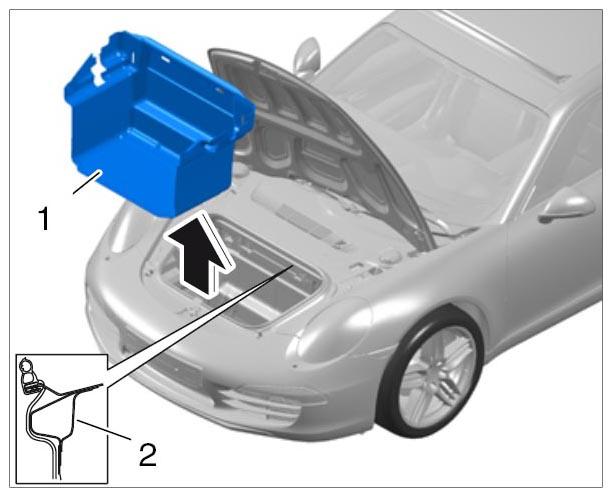

6. Unhook carpet lining -2-  behind the seal.
   1. 6.1. Lift up luggage compartment liner -1-  and remove it.
      Fig 5: Removing Luggage Compartment Liner

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
