Removing Front Trim (Wing Flange)

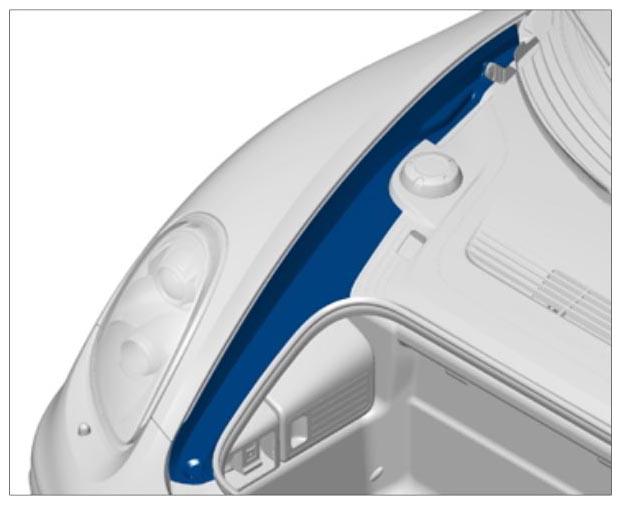

Fig 1: Identifying Front Trim Installation Position (Wing Flange)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip wing flange trim panel -1- at the top.

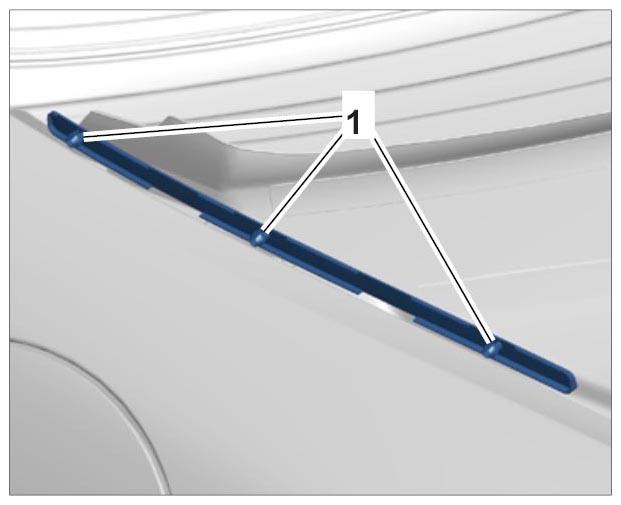

Fig 2: Removing Upper Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip rear trim panel -1-

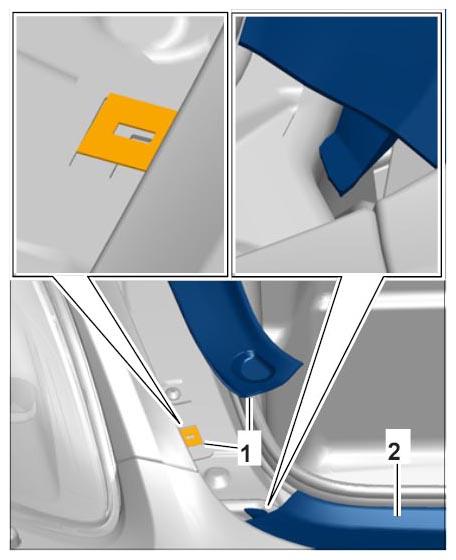

Fig 3: Identifying Rear Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift the wing flange trim panel slightly, pull it out of the locking lug -1- at the bottom and then pull it out of the lock carrier trim panel -2- .

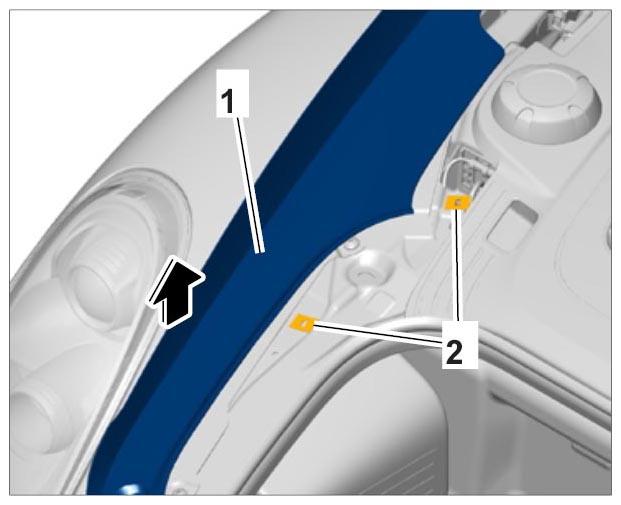

Fig 4: Identifying Wing Flange Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
