68 - Interior Equipment -- 911 CARRERA (991)
>>
WM 689319 Removing And Installing Fire Extinguisher (Console) (All Models)
>>
Removing Fire Extinguisher
Removing Fire Extinguisher
Loosen fastening screws
-1 and 2-
and remove fire extinguisher.

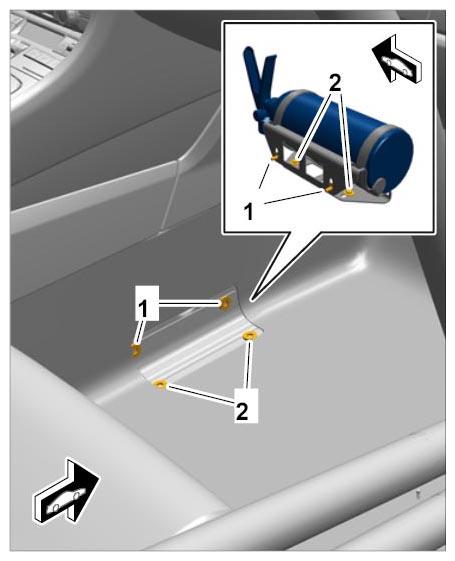

Fig 1: Removing Fire Extinguisher
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
