Installing Fire Extinguisher

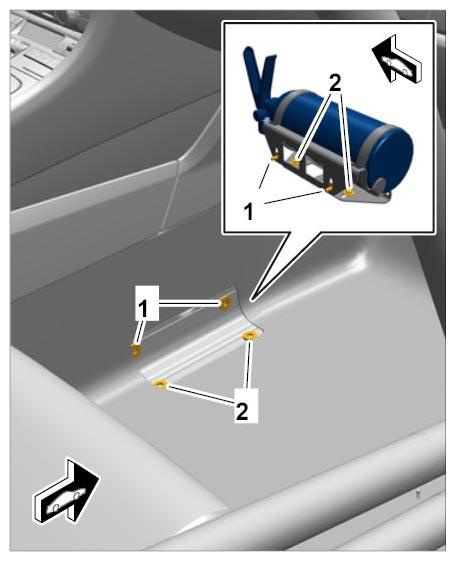

- Fit fire extinguisher in the footwell on the passenger's side at the center tunnel -1-
and floorpan -2-
.
- Tighten fastening screws -1 and 2-
for the fire extinguisher. Tightening Torque 9.7 Nm (7.5 ft. lbs.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
