Removing Front Ashtray

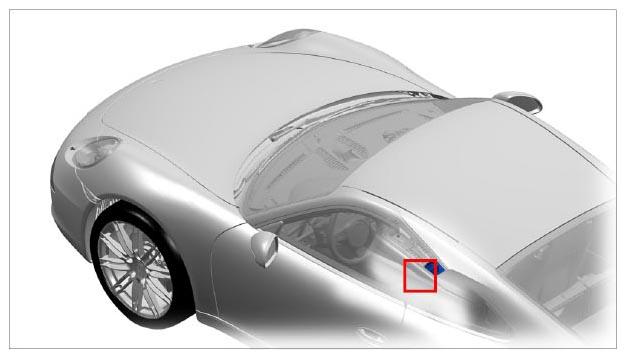

Fig 1: Identifying Front Ashtray
G09995168Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Open ashtray cover.
  2. Remove ashtray insert -A-  and cigarette lighter -B-  .

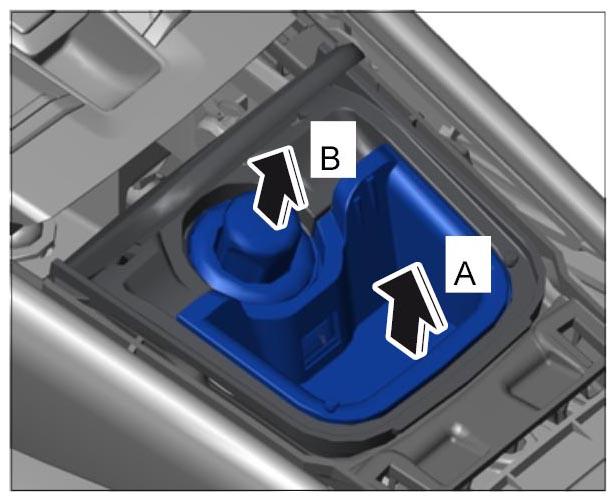

    Fig 2: Removing Ashtray Insert And Cigarette Lighter
    G09995169Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove ashtray.
    1. 3.1. Unclip ashtray at the front -A-  and pull it up and back and pull out -B-  .

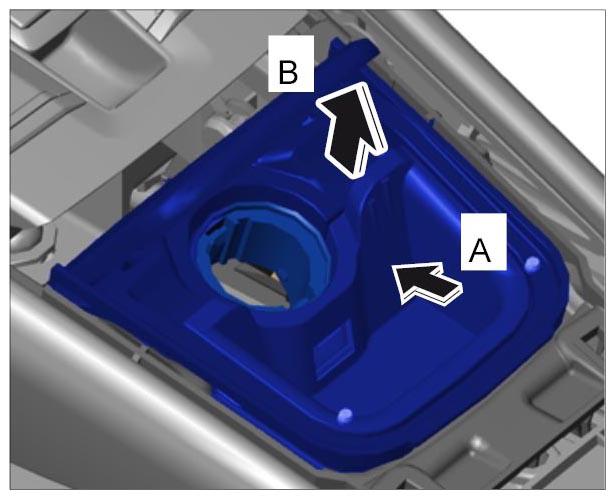

    Fig 3: Removing Ashtray
    G09995170Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unplug plug connection for cigarette lighter -arrow-  .

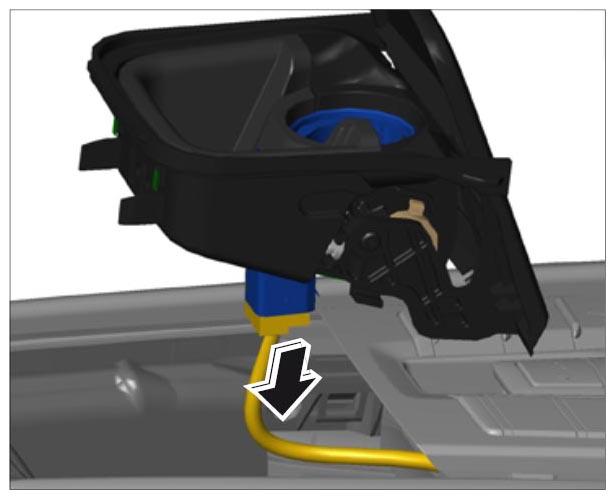

    Fig 4: Disconnecting Plug Connection
    G09995171Courtesy of PORSCHE CARS NORTH AMERICA, INC.
