Removing Center Console

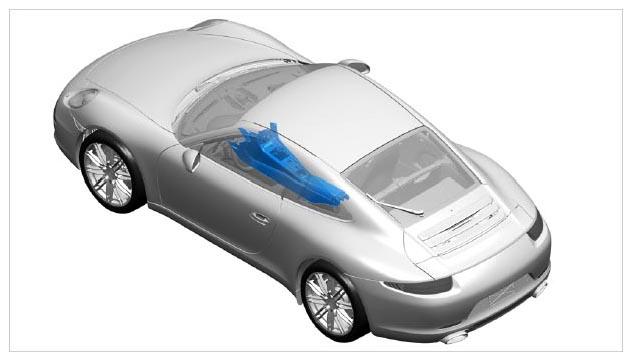

Fig 1: Identifying Center Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove wire harness.

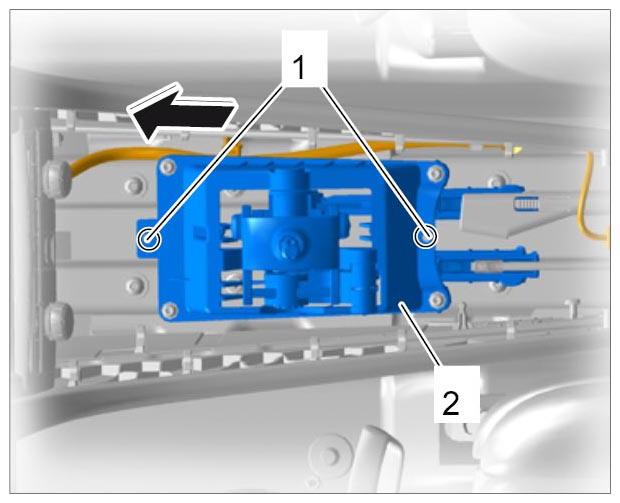

1. 1.1. Loosen clips on wire harness -1- on selector support. -2-
2. 1.2. Pull wire harness -A- through the opening of the center console -arrow-

  Fig 2: Removing Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connection.

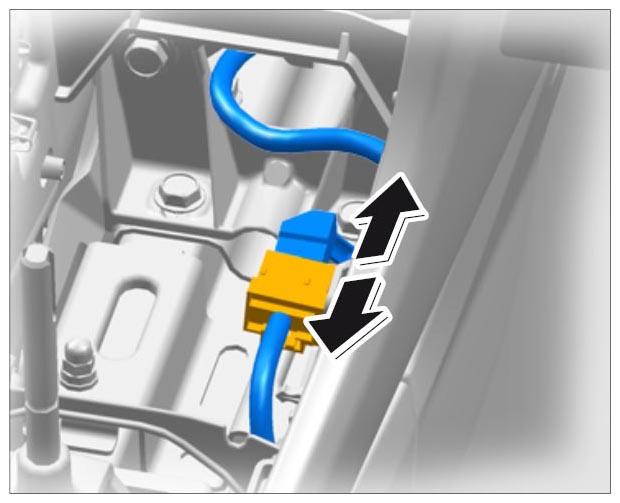

1. 2.1. Disconnect plug connection and connector. -arrow-

  Fig 3: Disconnecting Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release center console at the front.

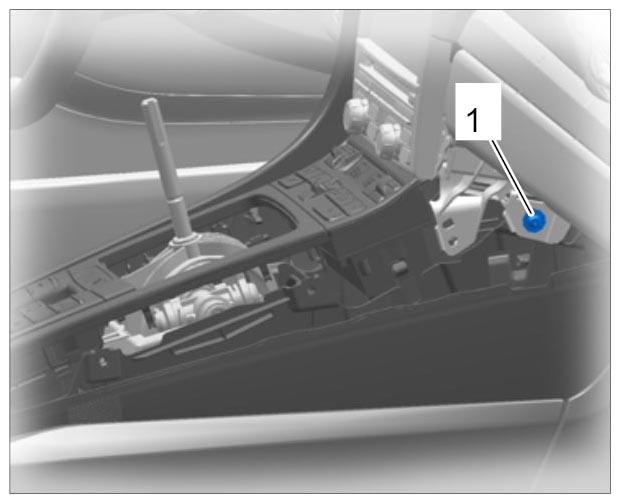

1. 3.1. Unscrew the fastening screws -1- at the front left and right.

  Fig 4: Identifying Center Console Front Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release center console at the top.

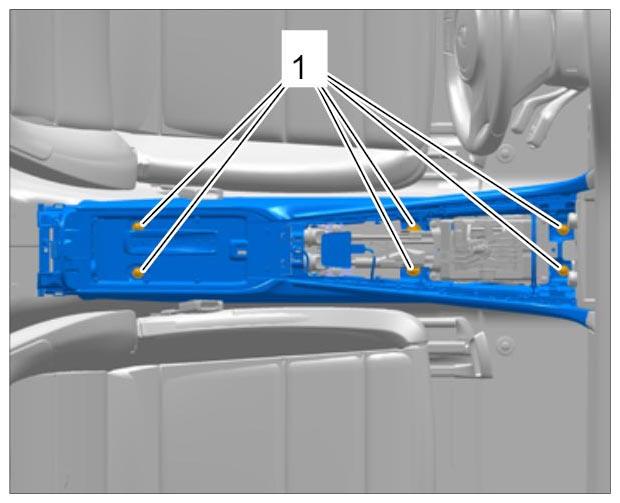

1. 4.1. Unscrew fastening screws -1- at the top on the center console.

  Fig 5: Identifying Center Console Top Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Make sure that no plug connections and lines are damaged.
Remove center console.

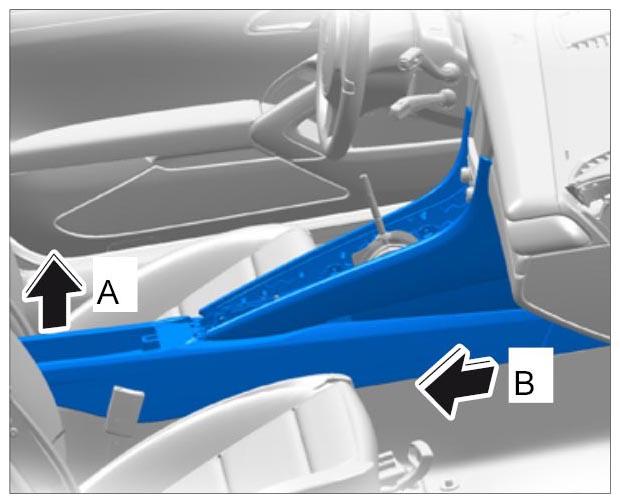

1. 5.1. Lift rear center console. -arrow A-
2. 5.2. Pull center console to the back out of the guide. -arrow B-

  Fig 6: Removing Center Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
