Removing Glove Compartment

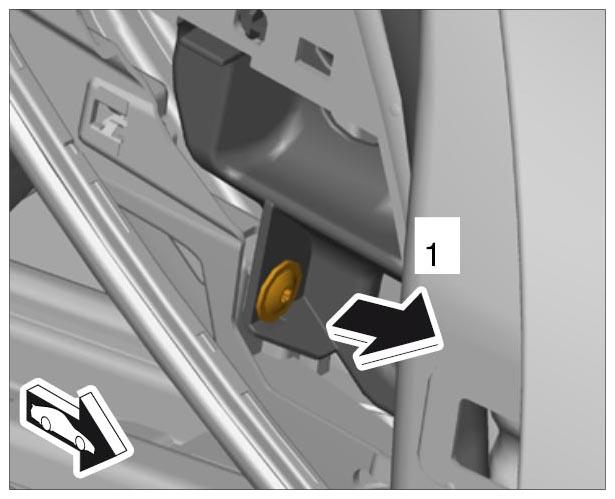

Unscrew the fastening screw at the side -1- .

Fig 1: Loosening Mounting Screw (Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

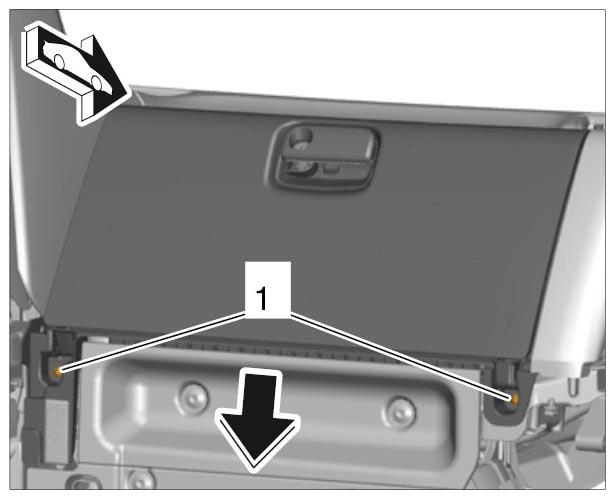

Unscrew the fastening screws -1- at the bottom.

Fig 2: Loosening Mounting Screws (Bottom)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

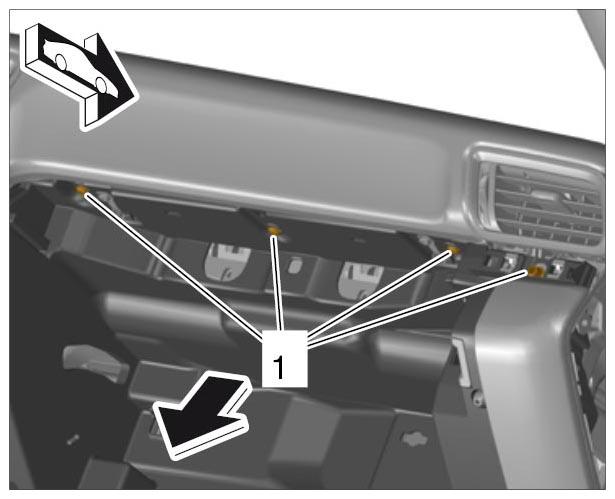

Unscrew the fastening screws at the top -1- .

Fig 3: Loosening Mounting Screws (Top)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

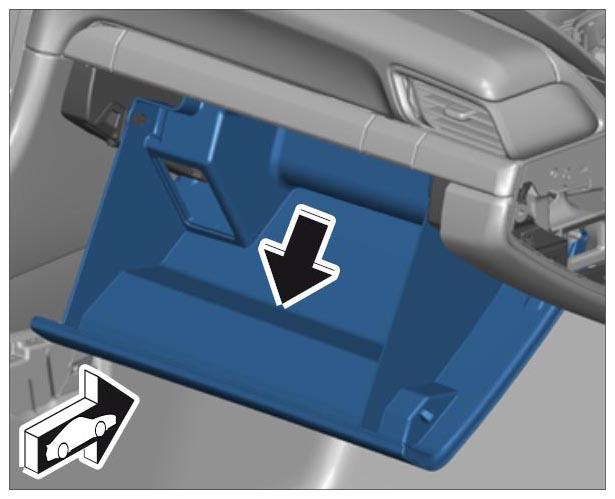

Unclip the glove compartment -arrow- .

Fig 4: Removing Glove Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

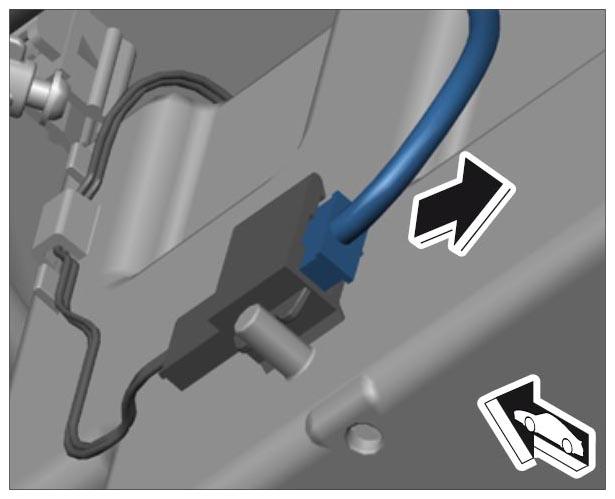

Pull off plug connection for glove compartment light -arrow- .

Fig 5: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

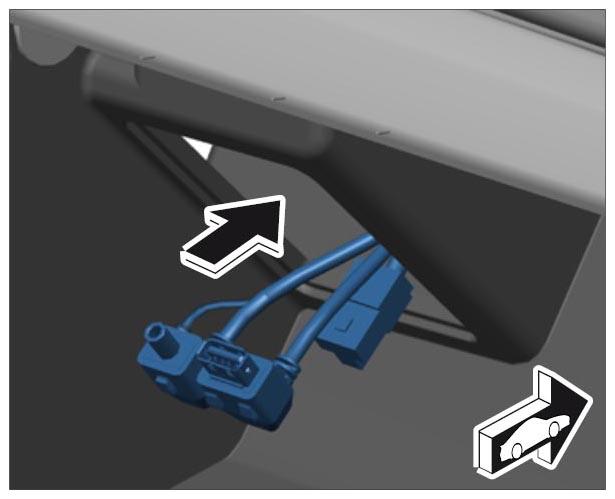

Guide wire harness for multimedia interface out of the glove compartment -arrow- .

Fig 6: Guiding Out Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
