Removing Center Console Cover

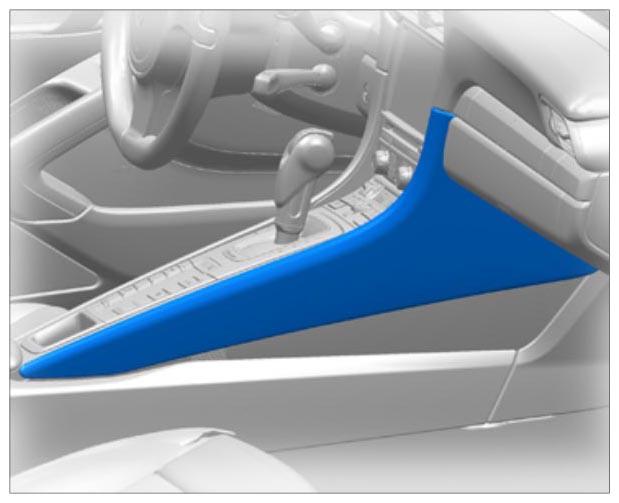

Fig 1: Identifying Center Console Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove side trim panel.
1. 1.1. Unclip side trim panel at the sides.

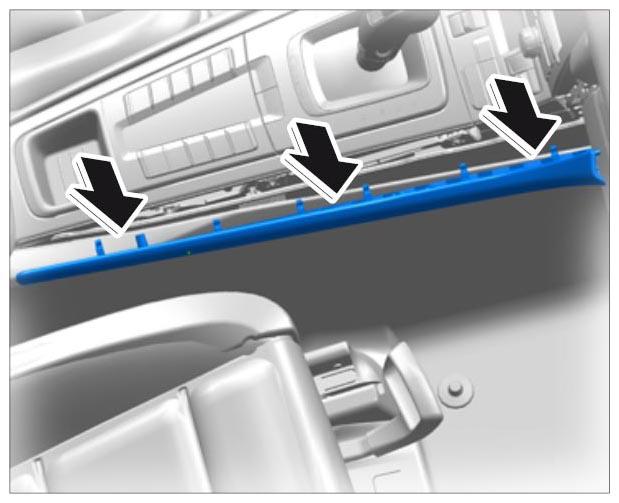

  Fig 2: Removing Side Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove side trim panel.
1. 2.1. Pull the side trim panel back out of the guide -arrow- .

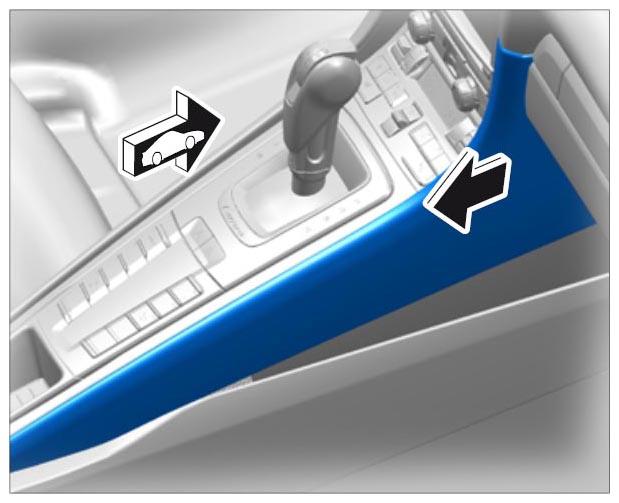

  Fig 3: Removing Side Trim Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach footwell outlet vent trim.
1. 3.1. Unscrew fastening screw -1- on footwell outlet vent trim -2- .

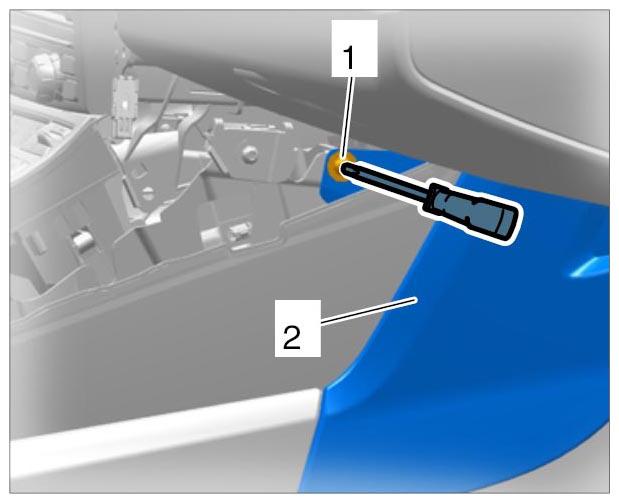

  Fig 4: Detaching Footwell Outlet Vent Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove footwell outlet vent.
1. 4.1. Guide footwell outlet vent trim -1- forward -arrow A- out of the guide -2- .
2. 4.2. Remove footwell outlet vent trim in a downward direction -arrow B- .

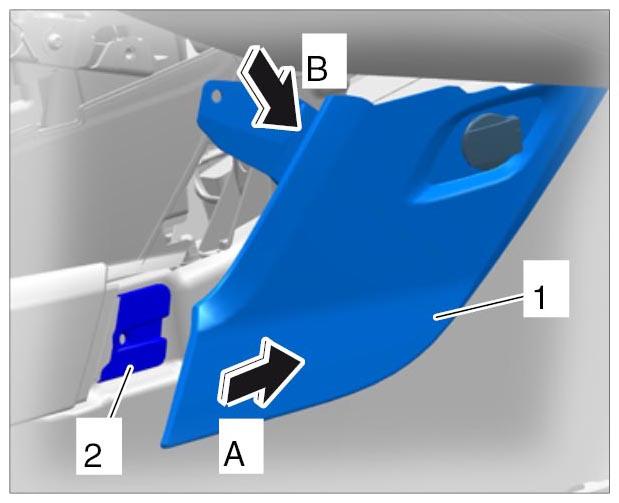

  Fig 5: Removing Footwell Outlet Vent Trim
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection for footwell outlet vent trim (passenger's side).
1. 5.1. Release electric connector -1- and pull it off -arrow- .

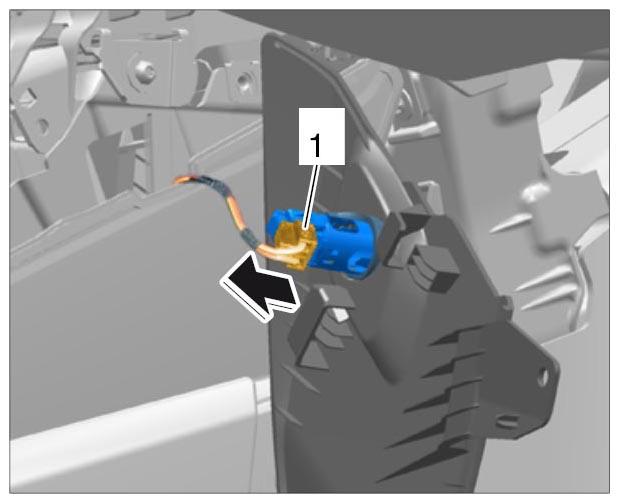

  Fig 6: Disconnecting Electric Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
