Removing Glove Compartment Lid

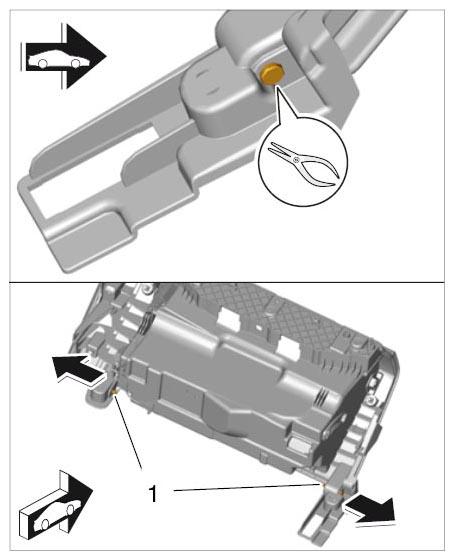

- Unclip the two fastening pins -1-
by levering them off using a suitable pliers.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

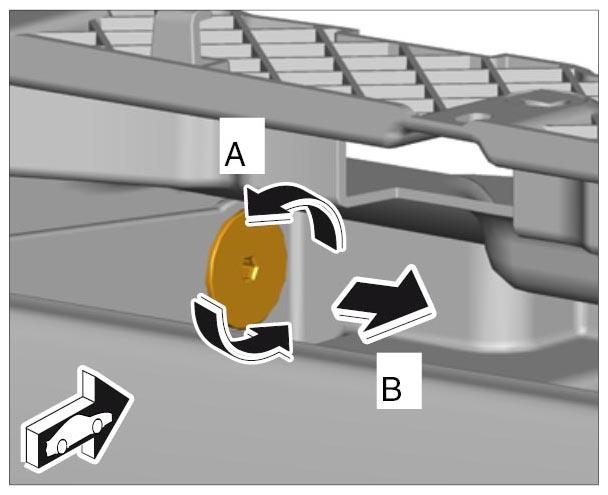

- Release the limit stop for the glove compartment lid by turning it -A-
and remove it from the glove compartment -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

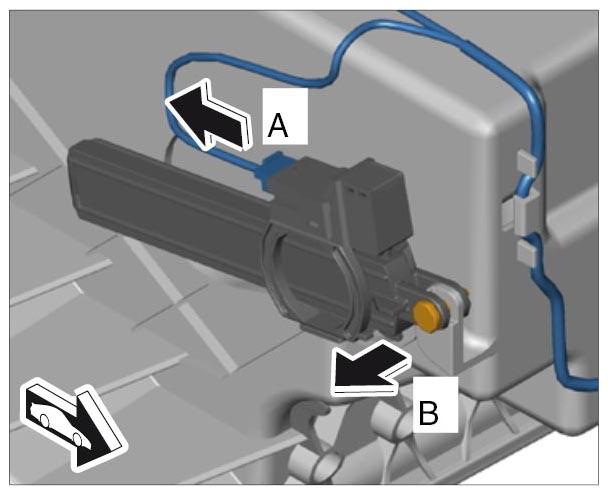

- Pull off the plug connection for the glove compartment light switch and the pin for the glove compartment lid brake.
- 3.1. Pull off the plug connection for the glove compartment light switch -A-
.
- 3.2. Pull out the retaining pin for the glove compartment lid brake -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

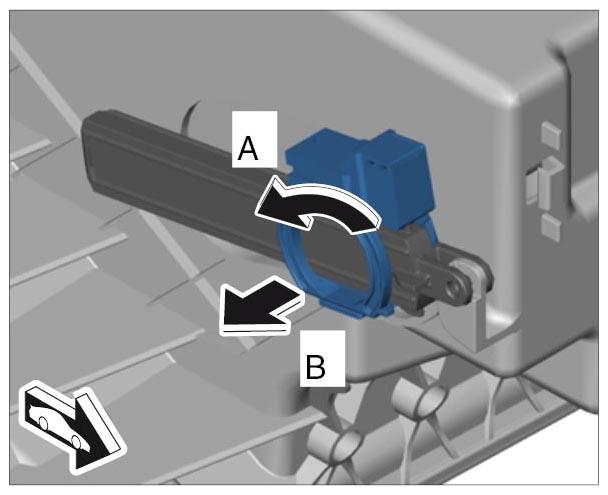

- Release the glove compartment lid brake by turning it -A-
and remove it from the glove compartment -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove glove compartment lid.
