68 - Interior Equipment -- 911 CARRERA (991)
>>
WM 681119 Removing And Installing Glove Compartment Lock (All Models)
>>
Removing Glove Compartment Lock
Removing Glove Compartment Lock
Lift the handle
-A-
and release the locking mechanism for the lock
-B-
.
Remove securing mechanism from the lock.

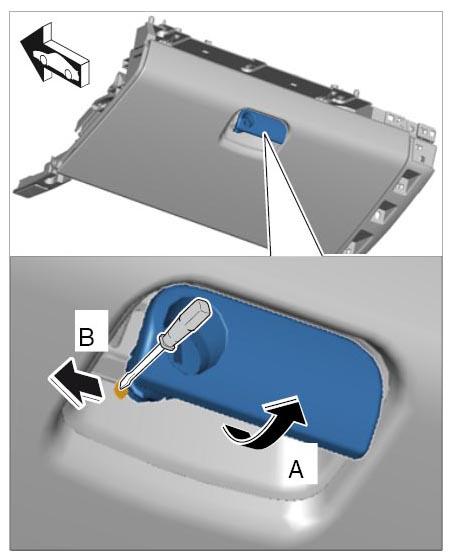

Fig 1: Releasing Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert ignition key and pull the lock out of the handle.

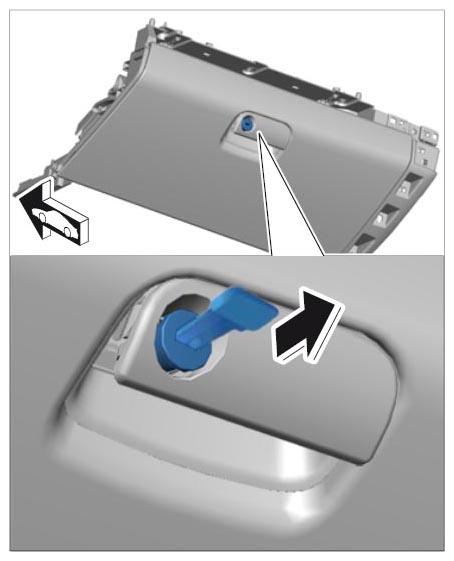

Fig 2: Removing Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
