Installing Glove Compartment Lock

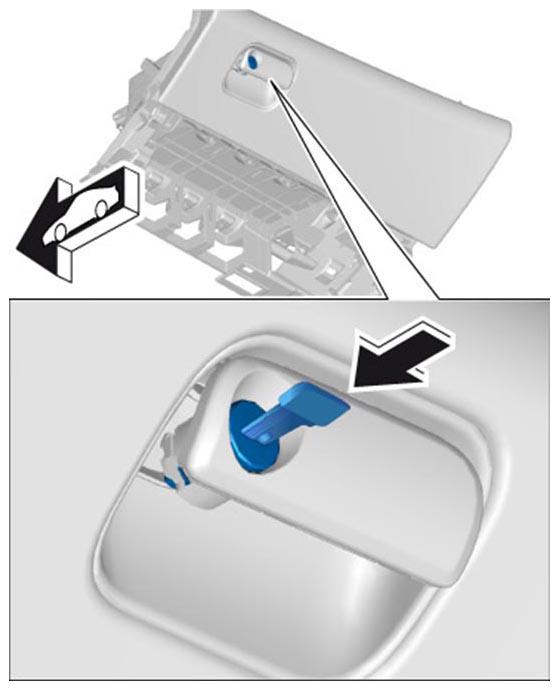

Lift the handle and slide the lock into the mounting on the handle from the opposite side in contrast to the installation position before removal.

Fig 1: Sliding Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

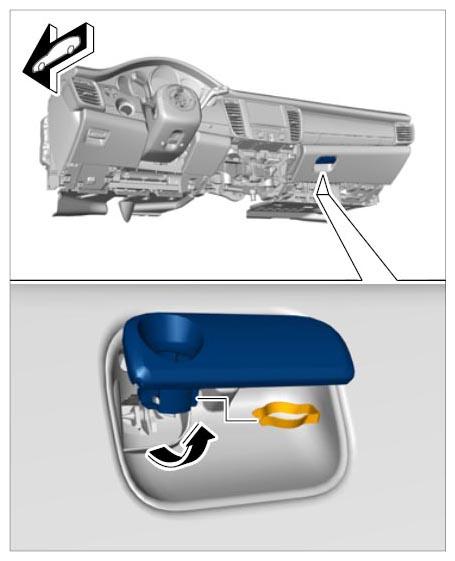

Insert glove compartment lock until it engages securely.

Fig 2: Inserting Glove Compartment Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carry out a function test with the glove compartment lid open.
