Changing Battery In Additional Handset For Telephone

  1. Insert a small screwdriver into the opening -1-  on the back of the additional handset and carefully pry off the cover -2-  .

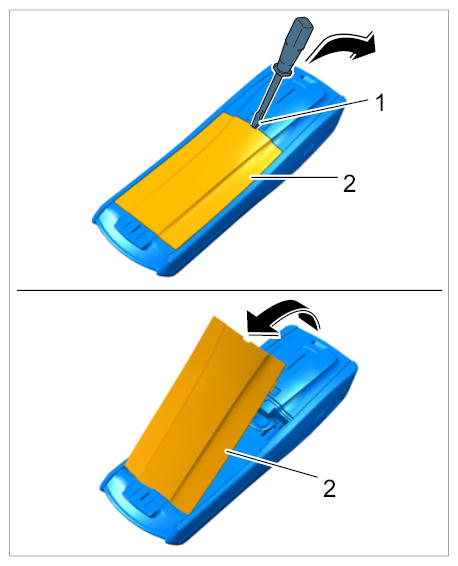

    Fig 1: Opening Cover
    G09999122
  2. Lift up the battery -3-  and unplug electric connector -4-  on the additional handset.

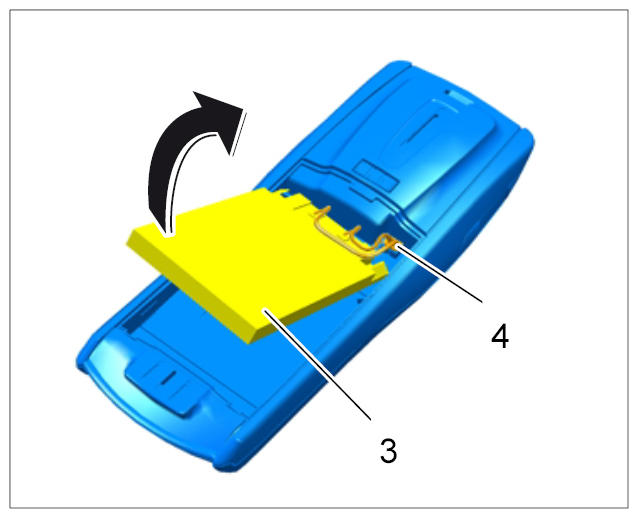

    Fig 2: Removing Battery
    G09999123
  3. Plug in electric connector -4-  on the additional handset and carefully push the plug connection on as far as it will go using a small screwdriver if necessary.

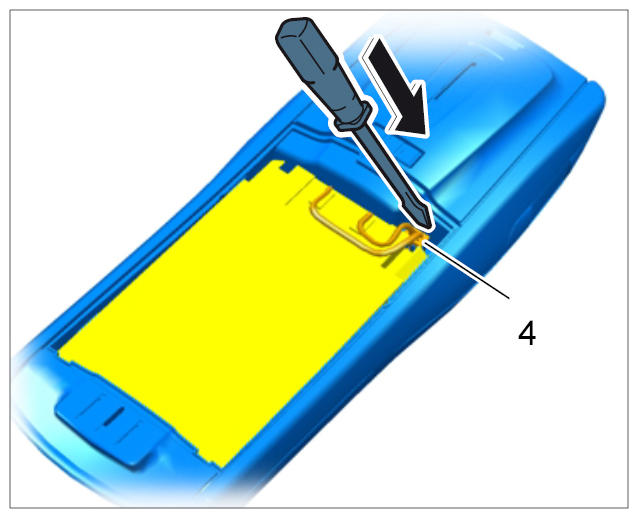

    Fig 3: Fitting Battery
    G09999124
  4. Insert the battery into the additional handset and close the cover until it engages securely.

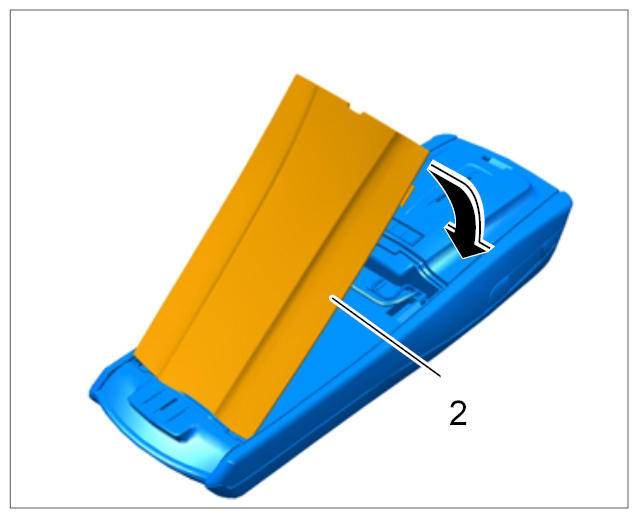

    Fig 4: Fitting Cover
    G09999125
