Removing Control Unit For Telephone
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
- Never touch the electric pins and plug contacts.
The telephone control unit is installed in the PCM.

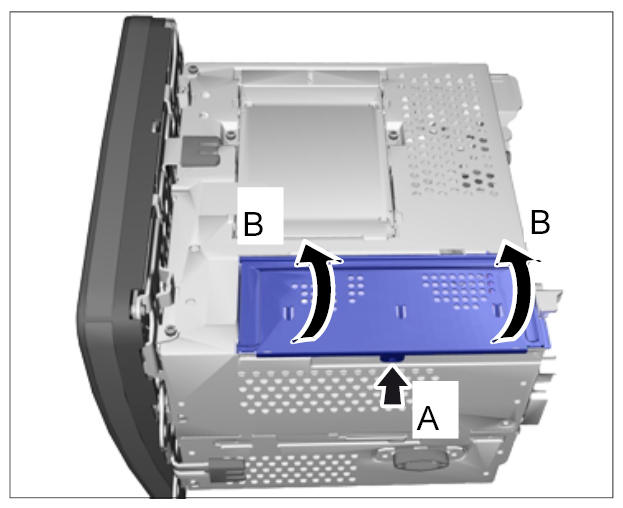

- Carefully release -A- and open -B- the cover on the PCM using a screwdriver.

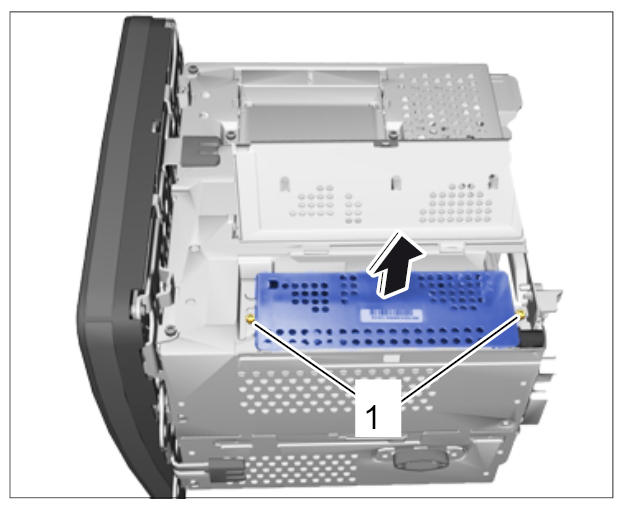

- Unscrew the two fastening screws -1- for the control unit and remove the control unit -arrow- .
