Removing Console For Telephone

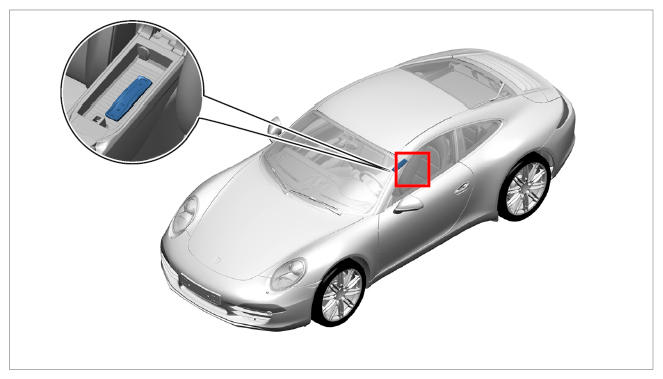

Fig 1: Identifying Telephone Console Position
G09999112
  1. Loosen console for telephone.

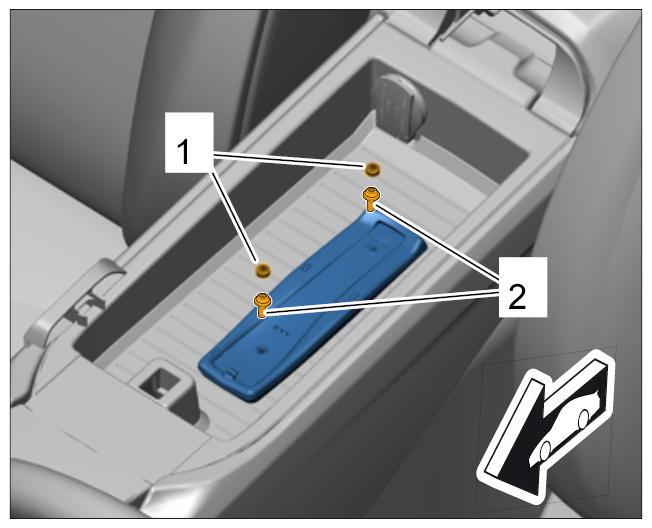

    Fig 2: Identifying Telephone Console Cover Caps And Fastening Screws
    G09999113
    1. 1.1. Remove cover caps -1-  .
    2. 1.2. Unscrew fastening screws -2-  .
    3. 1.3. Lift bracket for telephone.
  2. Pull off plug connection -arrow-  .

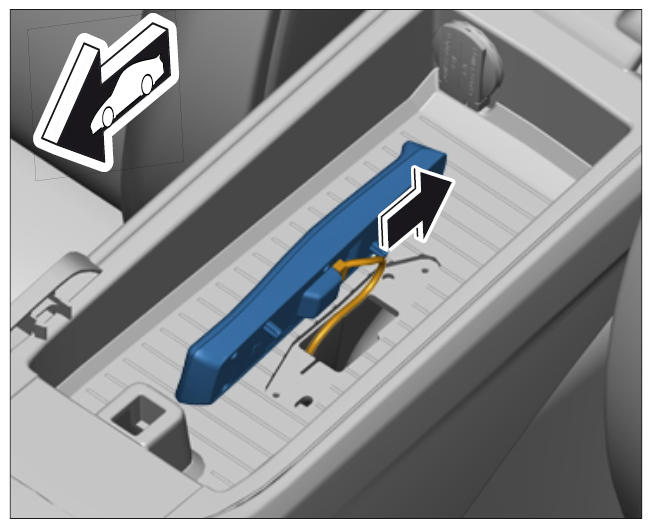

    Fig 3: Disconnecting Plug Connection
    G09999114
