Installing Console For Telephone

  1. Plug in plug connection -arrow-  and check that it is seated securely.

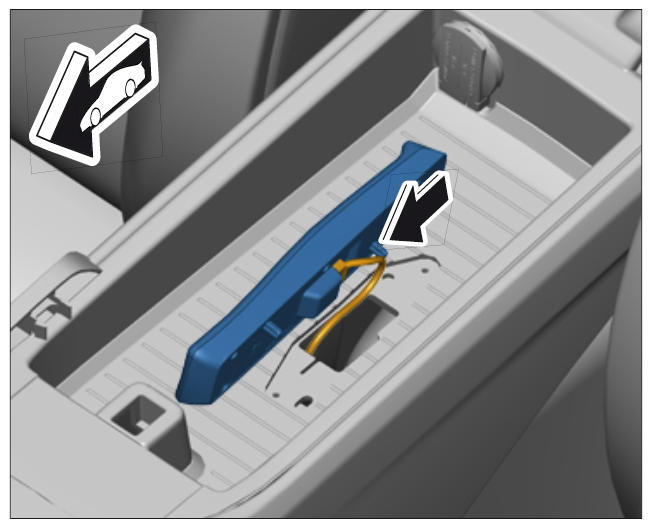

    Fig 1: Connecting Plug Connection
    G09999115
  2. Install bracket for telephone.
    1. 2.1. Position bracket for telephone in installation position.
    2. 2.2. Screw in -2-  fastening screws.
    3. 2.3. Press in caps -1-  .

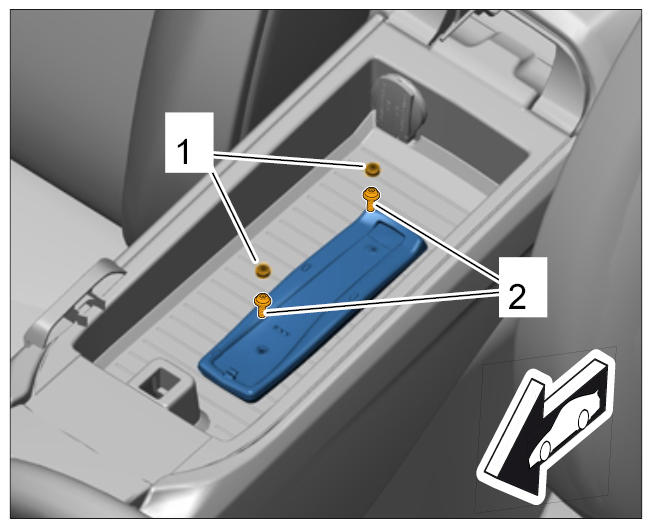

    Fig 2: Identifying Telephone Console Cover Caps And Fastening Screws
    G09999116
