Removing Antenna Control Unit

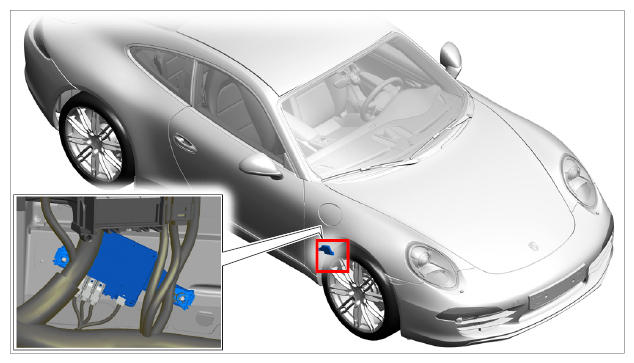

Fig 1: Identifying Antenna Control Unit Position

→ Switch off ignition and remove remote control before disconnecting or removing load.

1. Pull the carpet out slightly.

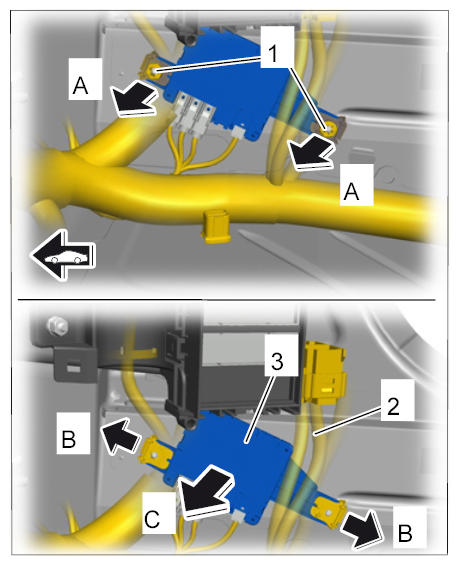

2. Unscrew the fastening parts -1- -arrows A-  and pull them out -arrows B-  .
3. Press the wire harnesses -2-  aside slightly and pull out the antenna control unit -3- -arrow C-  .

   Information

   The number of plug connections can vary, depending on equipment.

   Fig 2: Releasing Control Unit

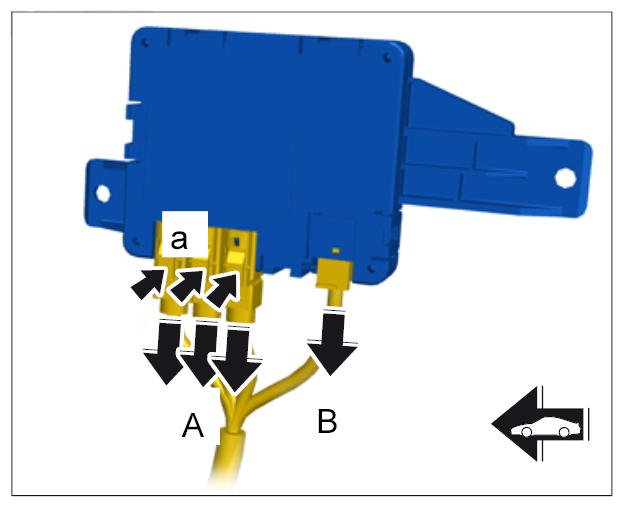

4. Release the electric plug connection -arrows a-  and unplug it -arrow A, B-  .
   Fig 3: Disconnecting Plug Connections
