Installing Control Unit For Antenna

Information

The number of plug connections can vary, depending on equipment.

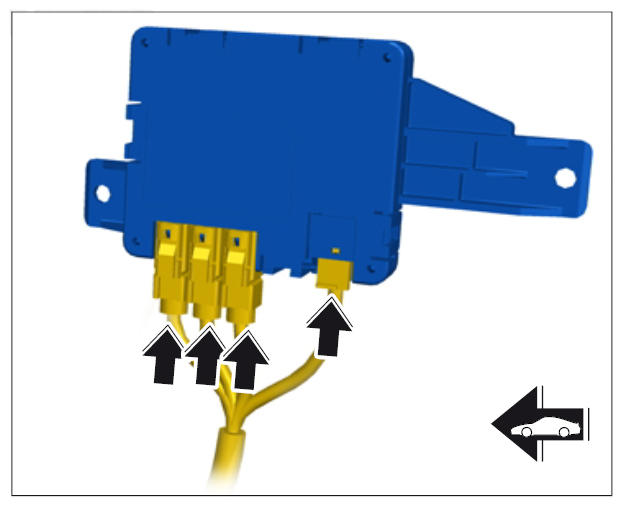

1. Connect the plug connections -arrows-  (according to color coding) until they engage securely.
   Fig 1: Connecting Plug Connections

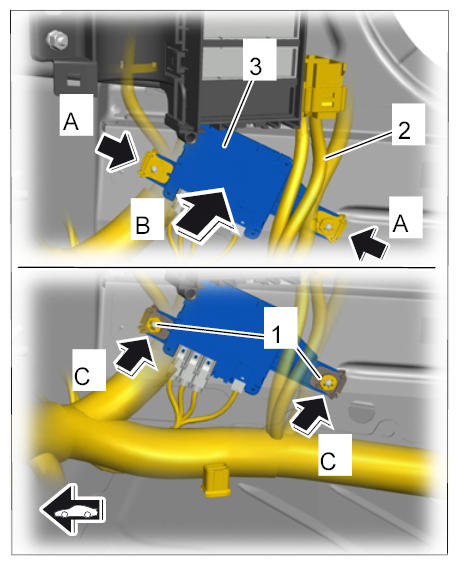

2. Push the fastening parts -1-  onto the antenna control unit -3- -arrows A-  .

   Position the antenna control unit -3-  on the A-pillar at the bottom -arrow B-  and screw down the fastening parts -1-  .

Fig 2: Securing Control Unit

3. Align the carpet.
