Removing Antenna Amplifier

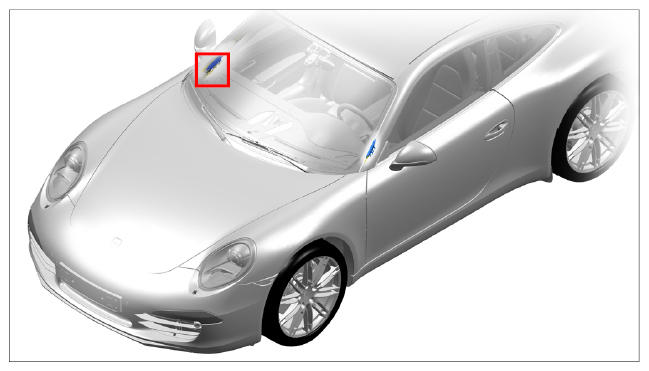

Fig 1: Identifying Antenna Amplifier Position
G09999100
NOTE: Voltage peaks
  • Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

  1. Unplug the antenna plug for the windscreen -arrows-  .

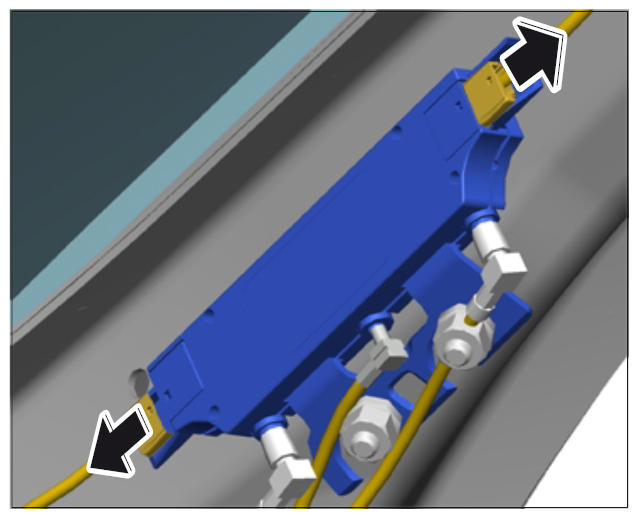

    Fig 2: Disconnecting Antenna Connector
    G09999101

    Information

    The number of plug connections can vary, depending on equipment.

  2. Carefully lever off electric plug connection using a small screwdriver and pull it off -arrows-  .

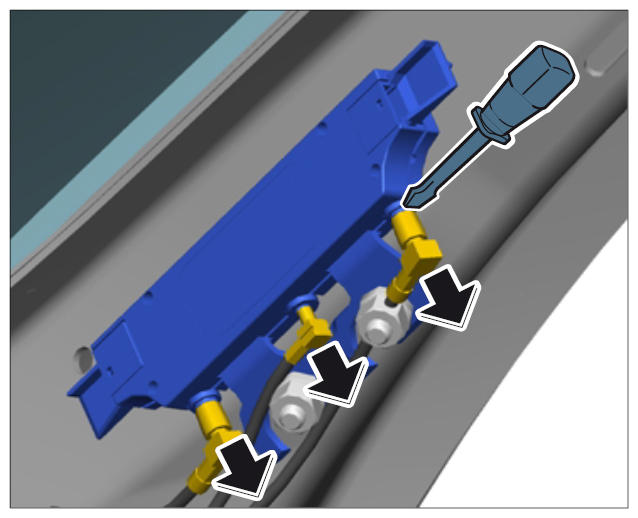

    Fig 3: Disconnecting Electric Plug Connections
    G09999102
  3. Unscrew fastening nuts -arrows-  .

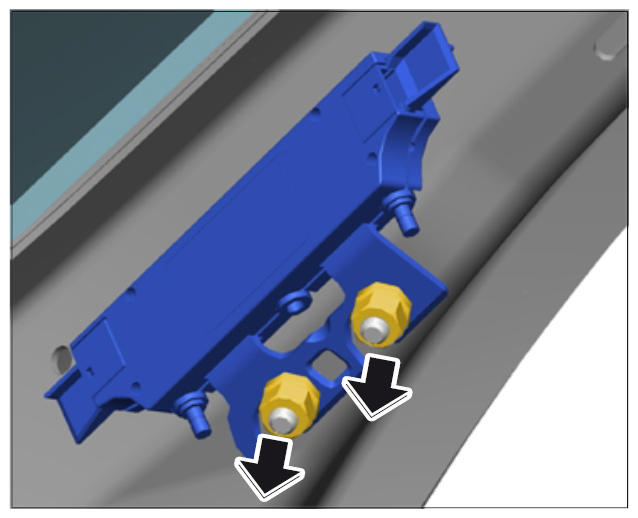

    Fig 4: Removing Antenna Amplifier
    G09999103
  4. Remove antenna amplifier.
