Installing Antenna Amplifier

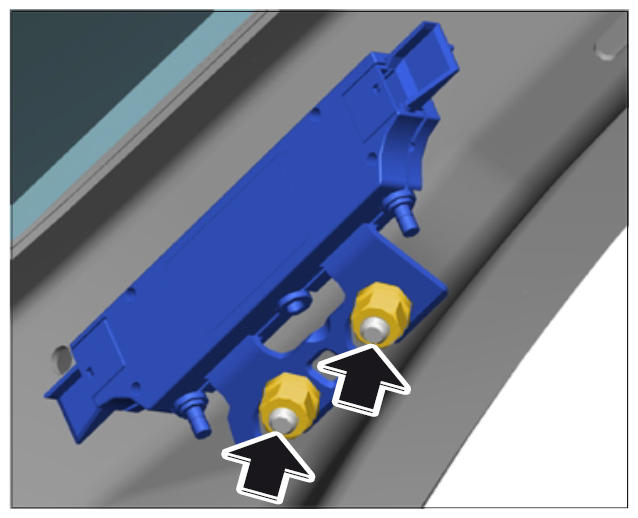

- Position the antenna amplifier on the A-pillar and screw down the fastening nuts -arrows-
. → Tightening torque: 6 Nm
Information
The number of plug connections can vary, depending on equipment.

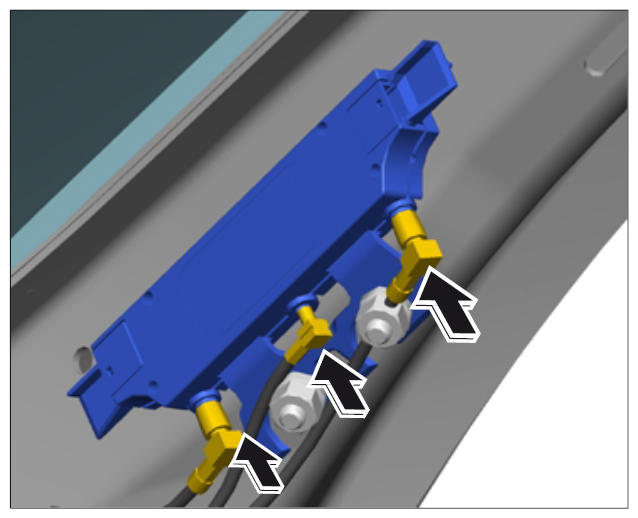

- Plug in electric plug connections -arrows- until they engage securely.

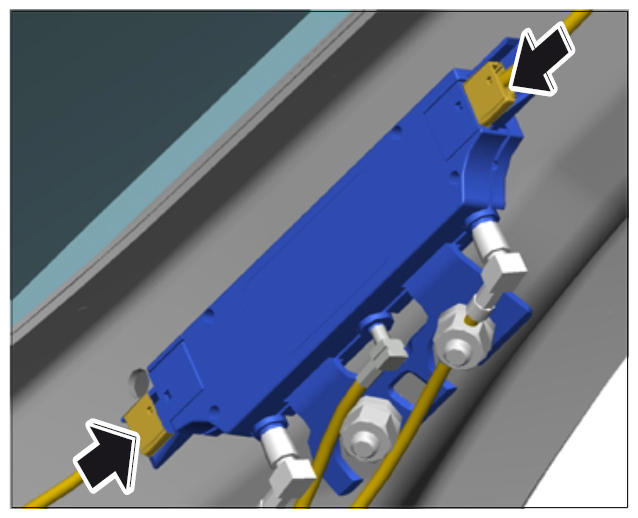

- Plug in the antenna plug for the windscreen -arrows-
.
- 3.1. Check that the connector is seated securely.
