Removing Multi-Function Control Unit

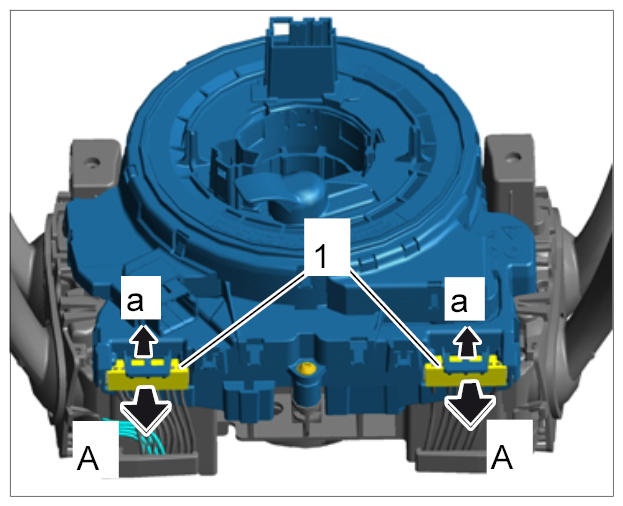

  1. Release electric plug connections -1-  (-a-  ) and disconnect connectors -A-  .
    Fig 1: Disconnecting Plug Connections
    G09999094

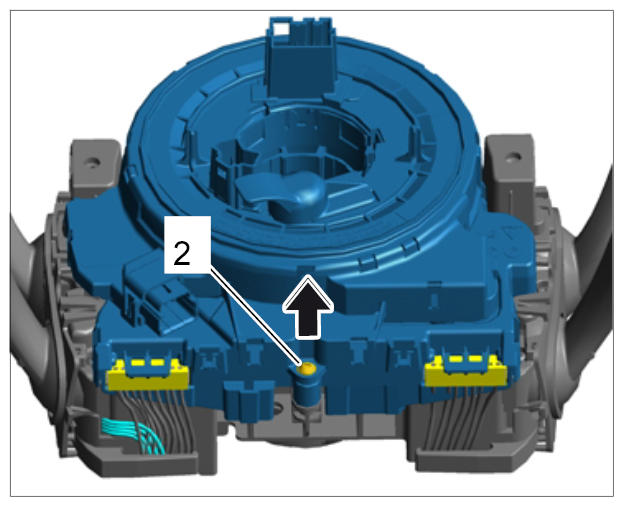

  2. Unscrew fastening screw -2-  .
    Fig 2: Removing Fastening Screw
    G09999095

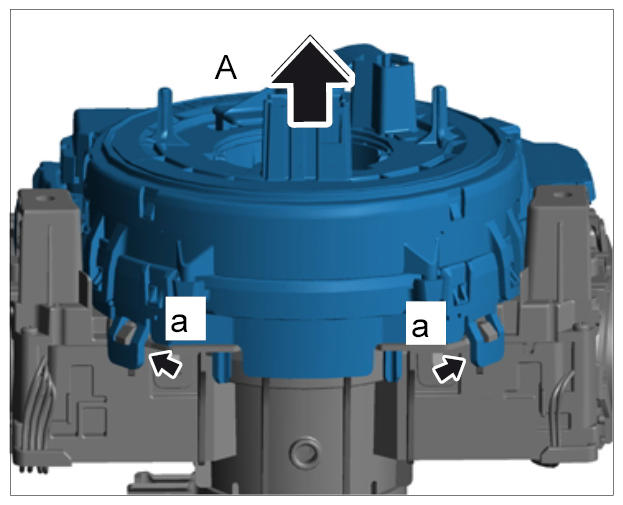

  3. Release locking lugs -a-  and remove multi-function control unit -A-  .
    Fig 3: Removing Multi-Function Control Unit
    G09999096
