Installing Multi-Function Control Unit

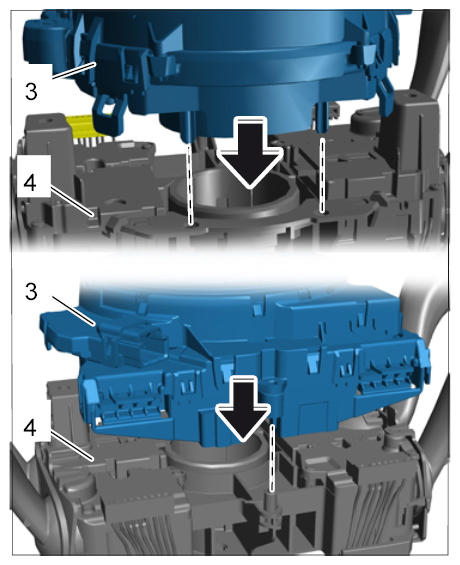

- Insert guide pins on the multi-function control unit -3-
into the relevant holes on the steering-column switch -4-
.

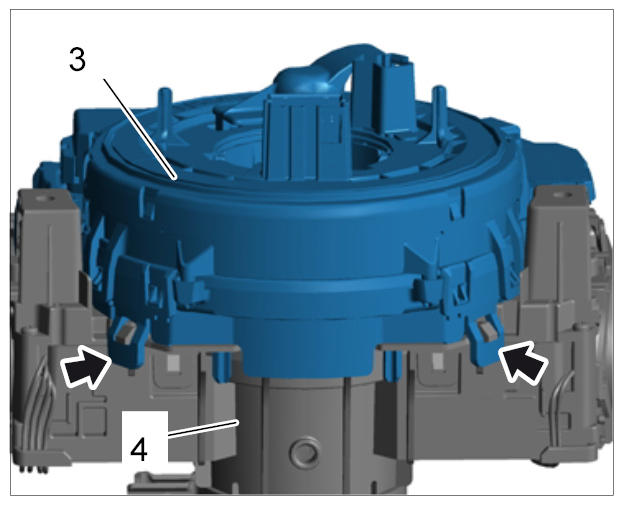

- Press the multi-function control unit -3-
onto the steering-column switch -4-
until the locking lugs -arrows
lock securely.

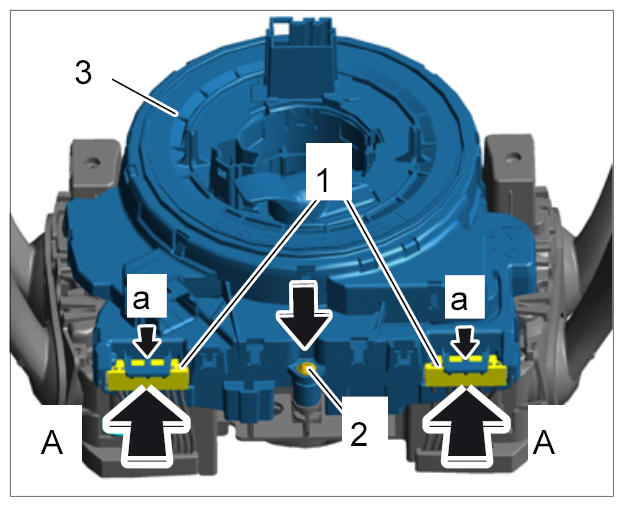

- Use the fastening screw -2-
to secure the multi-function control unit -3-
to the steering-column switch.
- 3.1. Connect electric plug connections -1-
to the multi-function control unit -3-
(-A-
) until the connector engages securely -a-
.
