Removing Control Unit For ParkAssist: Notes

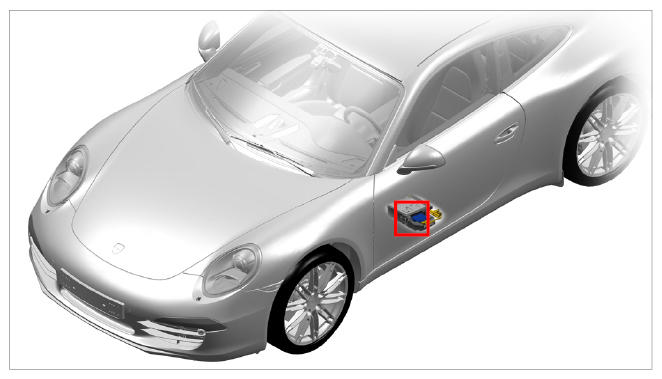

Fig 1: Identifying Parkassist Control Unit Position

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

1. Move front seat completely forward and upwards to the limit stop -arrow-  .

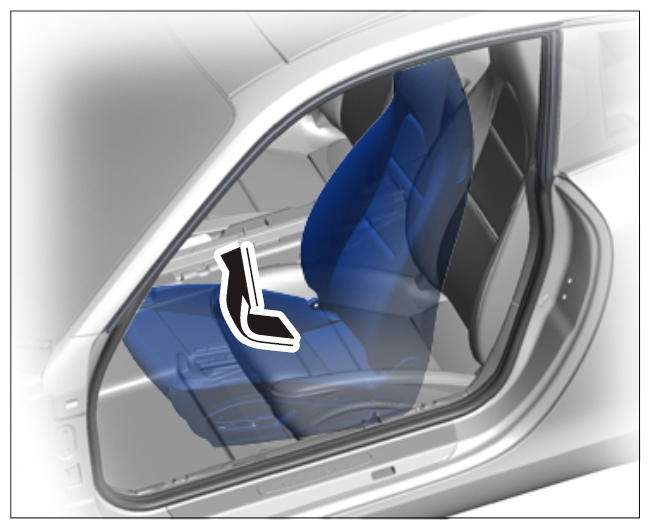

   Fig 2: Adjusting Front Seat


2. Fold up the carpet -arrow-  .

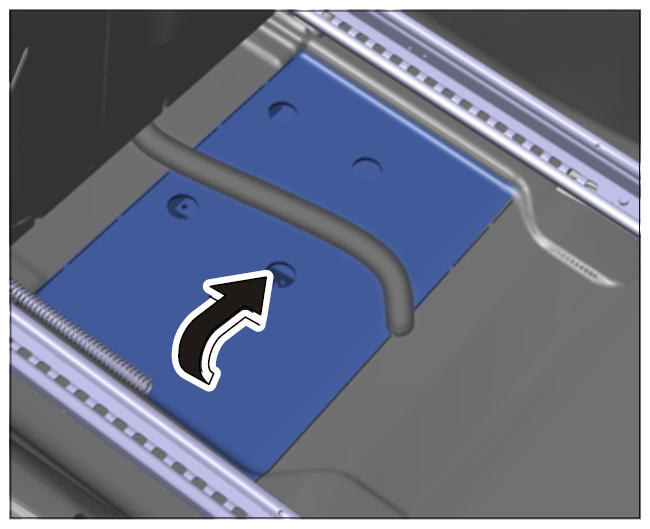

   Fig 3: Detaching Floor Covering


3. Remove foam holder -1-  with the control units -2, 3-  from the seat well -arrow-  .
   1. -2-  Control unit for rear-end electronics
   2. -3-  ParkAssist control unit

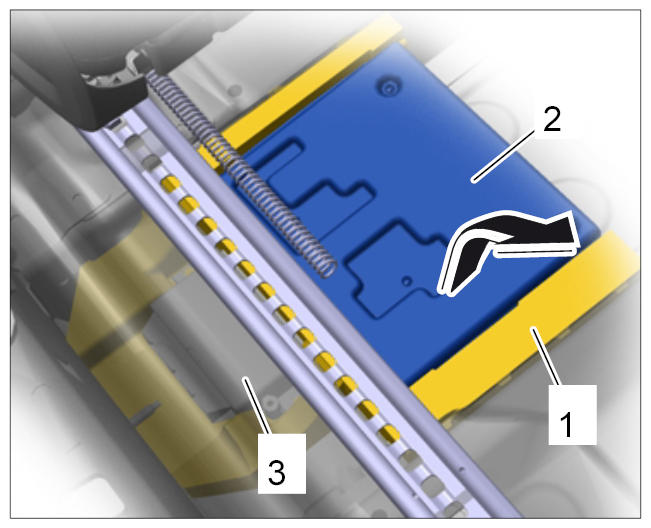

   Fig 4: Removing Control Units


4. Detach control unit for ParkAssist from of the foam holder -arrow A-  .
5. Release electric plug connections -arrow b-  and pull them off -arrows C-  .

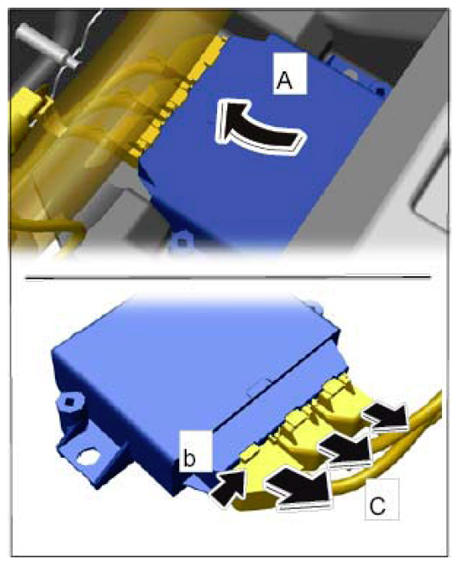

Fig 5: Removing Control Unit
