Installing Control Unit For ParkAssist: Notes

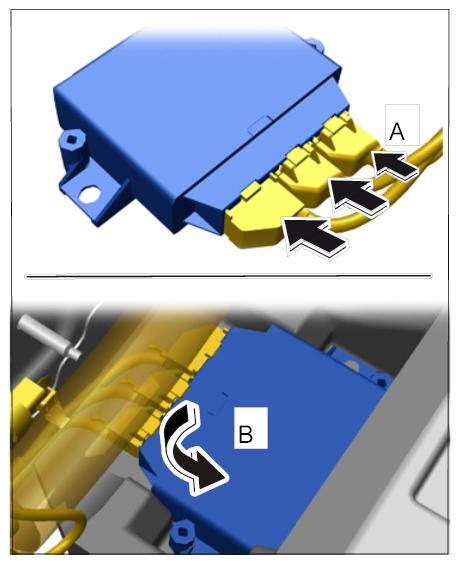

  1. Plug in the electric plug connections for the control unit for ParkAssist -arrows A-  until they engage securely.
  2. Push control unit for ParkAssist into the foam holder -arrow B-  .
    Fig 1: Installing Control Unit
    G09999082

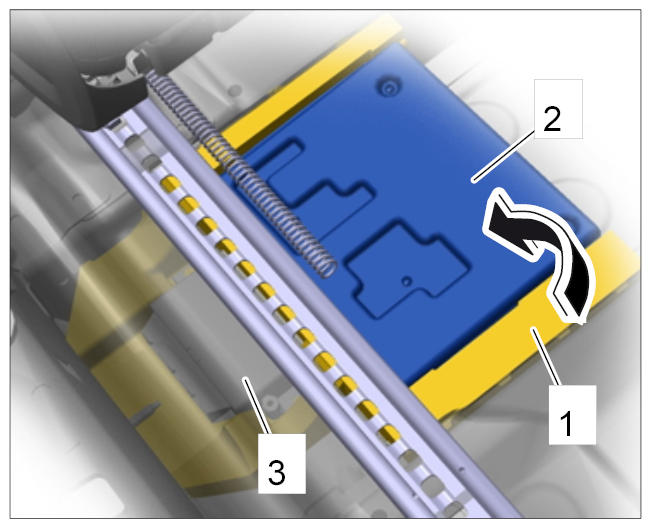

  3. Position foam holder -1-  with the control units -2, 3-  into the seat well -arrow-  and align.
    1. -2-  Control unit for rear-end electronics
    2. -3-  ParkAssist control unit
    Fig 2: Positioning Control Units
    G09999083

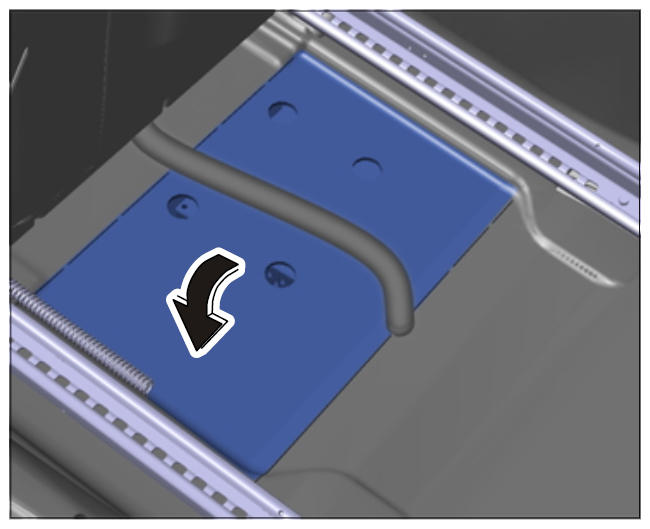

  4. Fold carpet down and align -arrow-  .
    Fig 3: Aligning Carpet
    G09999084
  5. Move front seat into initial position.
