Removing Outside Temperature Sensor

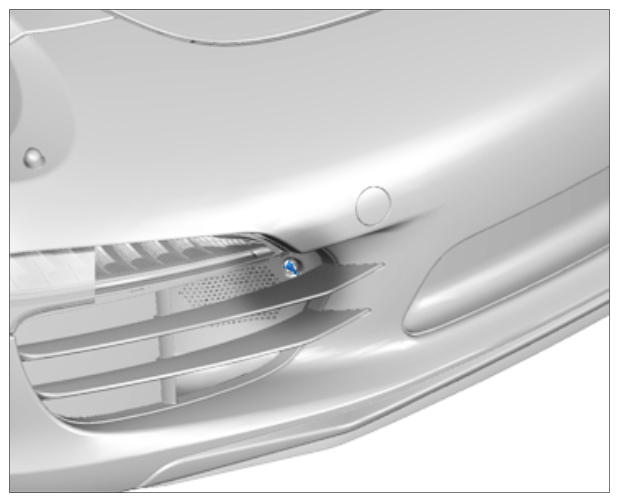

Fig 1: Identifying Outside Temperature Sensor Position
G09999069
  1. Carefully pull the loosened lower part of the front apron downwards.
  2. Pull outside temperature sensor out of the trim panel.

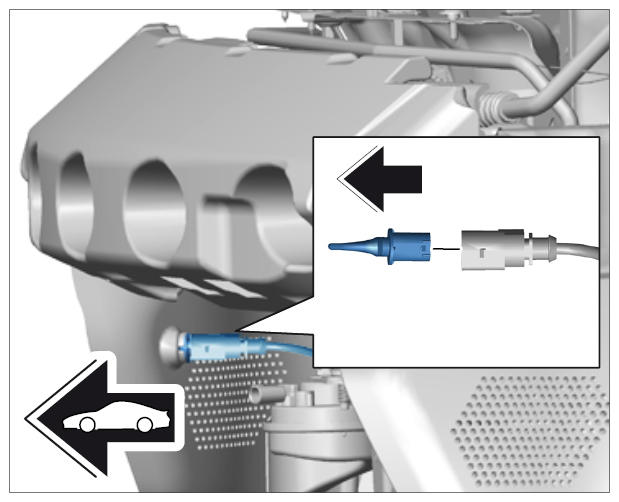

    Fig 2: Removing Outside Temperature Sensor
    G09999070
  3. Release electric plug connection and pull off the connector.
