Removing Microphone For Telephone

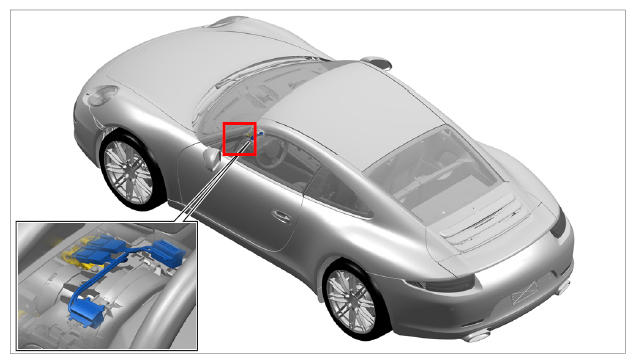

Fig 1: Identifying Telephone And Microphone Position
G09999051
  1. Adjust steering wheel to lower position.
  2. Unclip upper part of trim panel.
    1. 2.1. Turn steering wheel in such a way that the openings on the front are accessible.
    2. 2.2. Unclip upper part of trim panel through the openings on the front panel using a suitable screwdriver -arrows A-  and fold it up -arrows B-  .

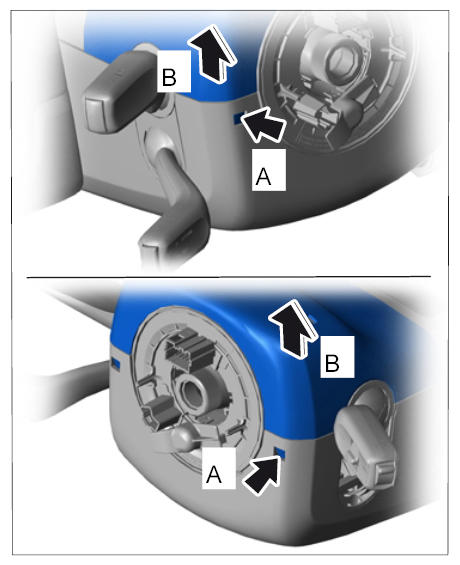

    Fig 2: Removing Trim Panel Upper Part
    G09999052
  3. Disconnect plug connections for microphone -arrows-  .

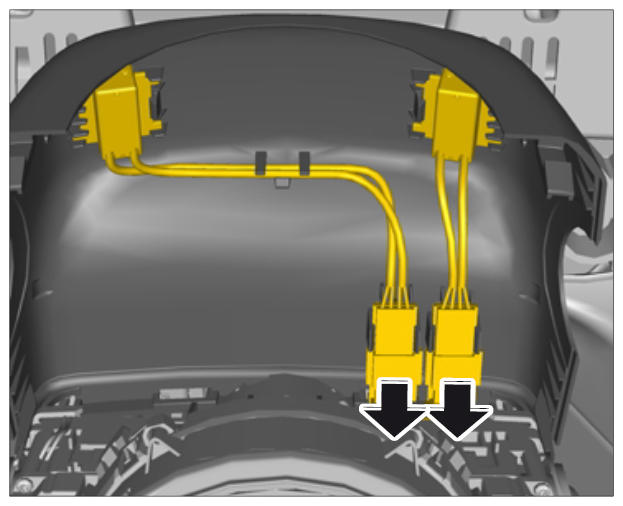

    Fig 3: Disconnecting Plug Connections
    G09999053
  4. Unclip the microphone -1, 2-  and electric connectors from the trim panel (steering-column switch) -arrows-  .
    1. Microphone for hands-free equipment
    2. Microphone language

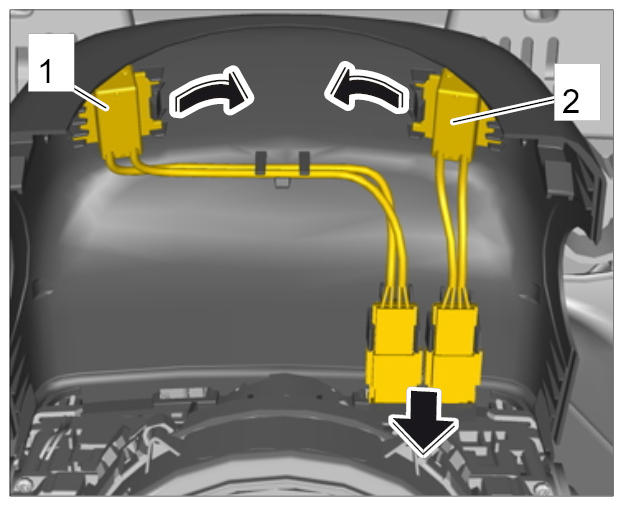

    Fig 4: Removing Microphone
    G09999054
