Installing Microphone For Telephone

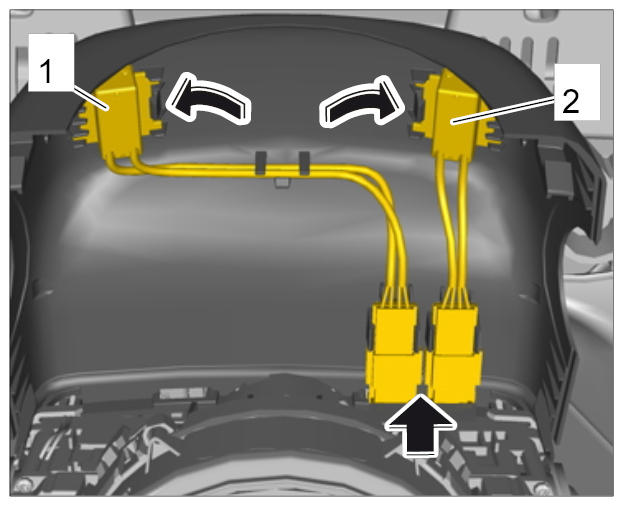

  1. Clip the microphone -1, 2-  and electric connectors into the trim panel (steering-column switch) -arrows-  .
    Fig 1: Installing Microphone
    G09999055

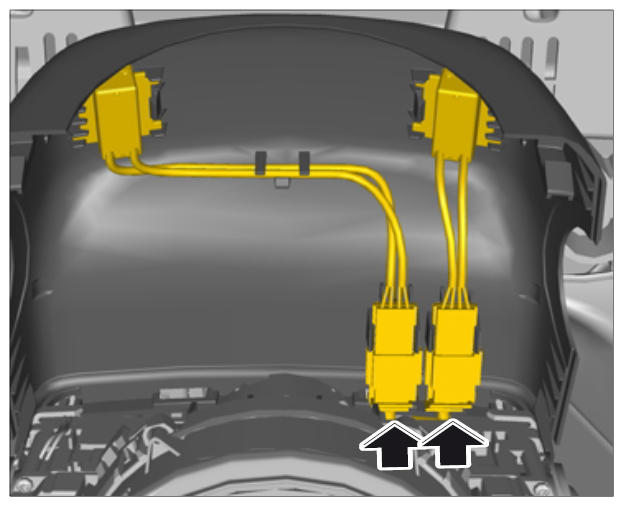

  2. Connect plug connection -arrows-  .
    Fig 2: Plugging In Connector
    G09999056
  3. Place trim panel back onto the steering column and push it in -arrows-  until the connections engage securely.
    Fig 3: Securing Trim Panel
    G09999057
