Removing Mobile Communication Antenna

  1. Release electric plug connection -1-  and pull antenna line off the mobile communication antenna -2-  .

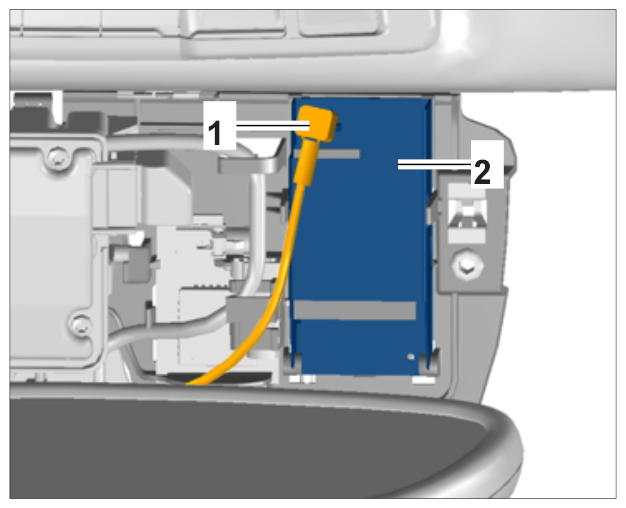

    Fig 1: Disconnecting Electric Plug Connection For Antenna Line
    G09999049
  2. Carefully disengage locking mechanisms at the left and right of the mobile communication antenna -1-  (-a-  ) and swivel mobile communication antenna down approx. 45°.
  3. Remove mobile communication antenna from the holders -2-  .

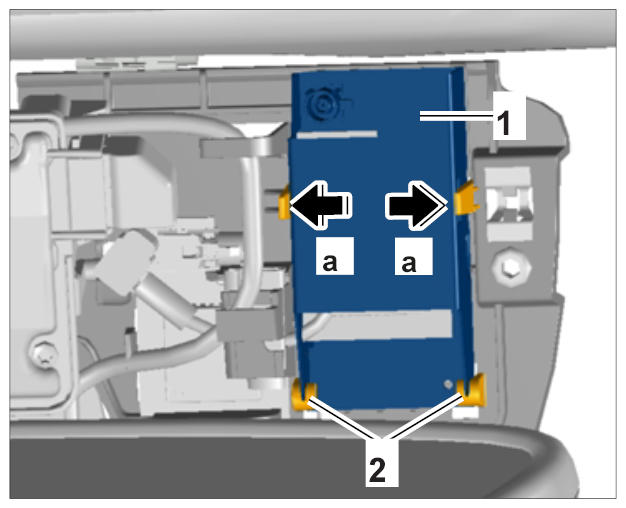

    Fig 2: Removing Mobile Communication Antenna
    G09999050
