Removing Mobile Communication Antenna

  1. Unclip cover -1-  on GPS antenna -arrow-  .
    Fig 1: Identifying Cover On GPS Antenna
    G09999043
  2. Remove mobile communication antenna.
    1. 2.1. Release mobile communication antenna -1-  (-a-  and -1-  ) and swivel it out by approx. 90° -A-  .
    2. 2.2. Release mobile communication antenna -1-  (-b-  ) and pull it off the plastic clips -2-  (-B-  ).

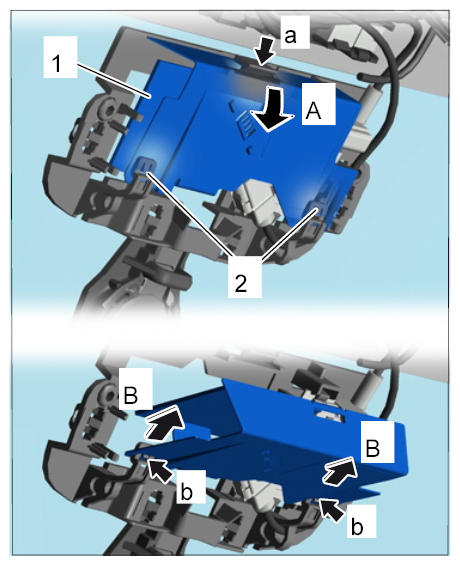

      Fig 2: Removing Mobile Communication Antenna
      G09999044
  3. Release antenna connector -2-  for the mobile communication antenna -1-  (-a-  ) and unplug it -A-  .

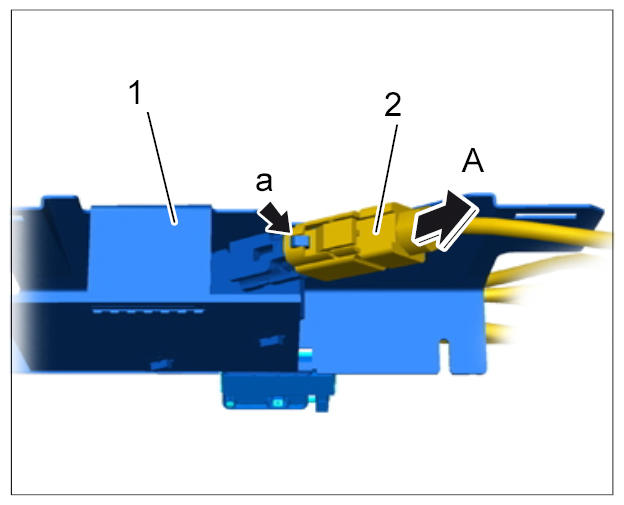

    Fig 3: Disconnecting Mobile Communication Antenna Plug Connection
    G09999045
