Installing Mobile Communication Antenna

  1. Plug in antenna connector -2-  (-arrow-  ) until the antenna connector -2-  engages securely.
    Fig 1: Connecting Mobile Communication Antenna Plug Connection
    G09999046
  2. Install mobile communication antenna.
    1. 2.1. Slide the mobile communication antenna -1-  onto the plastic clips -2-  (-A-  ) until the mobile communication antenna -1-  locks securely -a-  .
    2. 2.2. Swivel the mobile communication antenna -1-  into position -B-  until the mobile communication antenna locks securely in the plate -b-  .
      Fig 2: Installing Mobile Communication Antenna
      G09999047
  3. Clip in cover -1-  on GPS antenna -A-  .

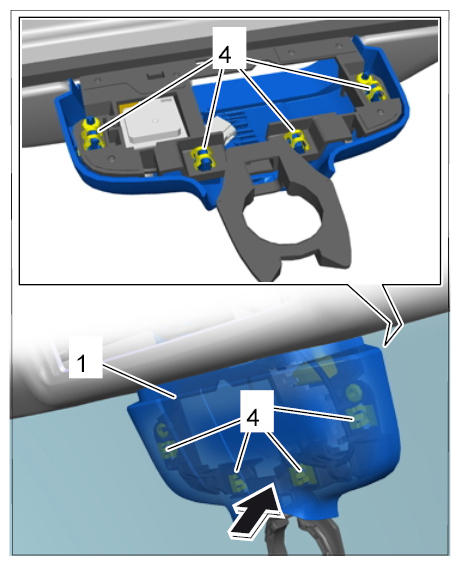

    Fig 3: Clipping In GPS Antenna Cover
    G09999048
