Removing Loudspeaker Amplifier

→ Switch off ignition and remove remote control before disconnecting or removing load.

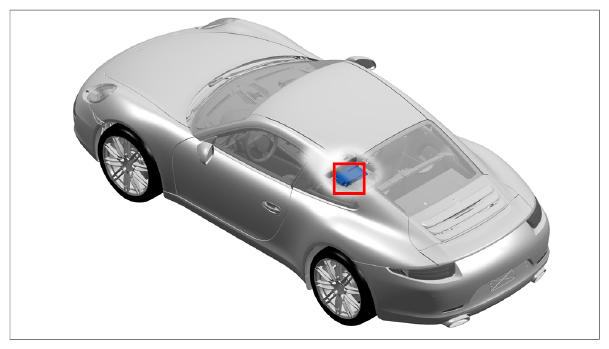

Fig 1: Identifying Loudspeaker Amplifier Position

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

1. Fold the carpet up -arrow-  .

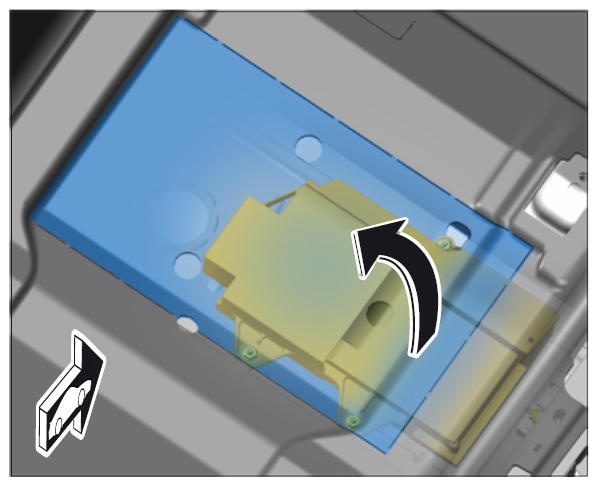

   Fig 2: Folding Carpet


2. Unscrew the fastening nuts -1-  and pull the loudspeaker booster -2-  out slightly.

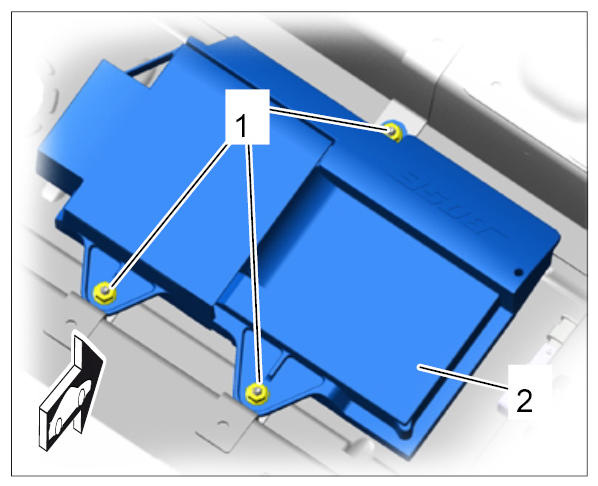

   Fig 3: Removing Loudspeaker Booster



   Information

   The number of plug connections can vary, depending on equipment.

3. Release the electric plug connection using a screwdriver -a-  and unplug it -B-  .

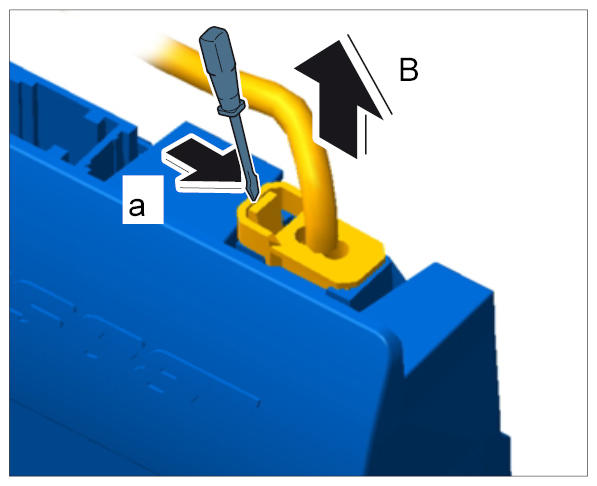

   Fig 4: Releasing Electric Plug Connection


4. Release the electric plug connection -arrow a-  and unplug it -arrow B-  .

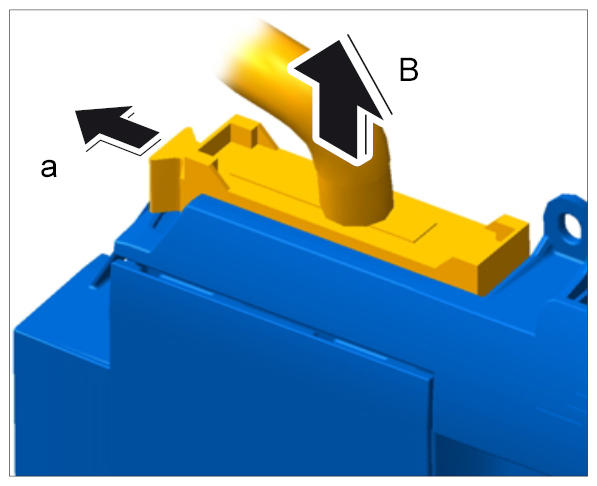

   Fig 5: Releasing Electric Plug Connection


5. Remove the loudspeaker booster.
