Installing Loudspeaker Amplifier

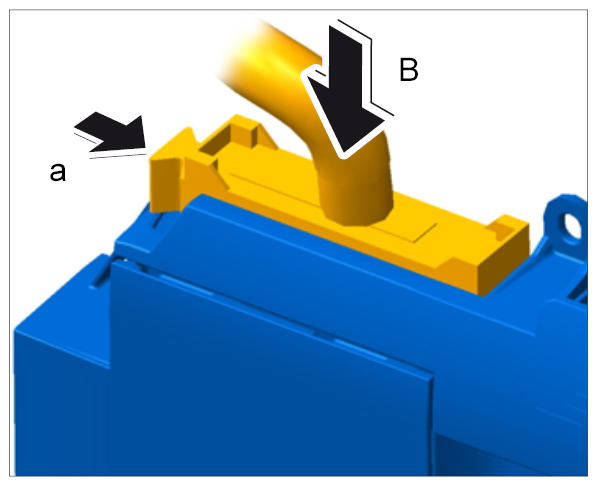

  1. Plug in the electric plug connection -arrow B-  and lock it -arrow a-  .
    Fig 1: Plugging In Plug Connection
    G09999037

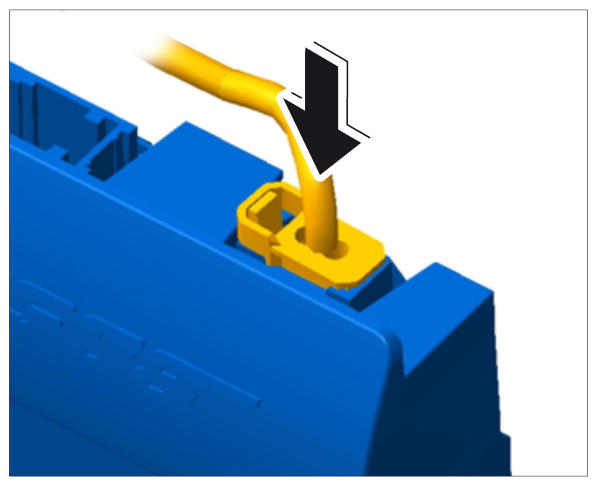

  2. Plug in the electric plug connection -arrow-  until it engages securely.
    Fig 2: Plugging In Plug Connection
    G09999038

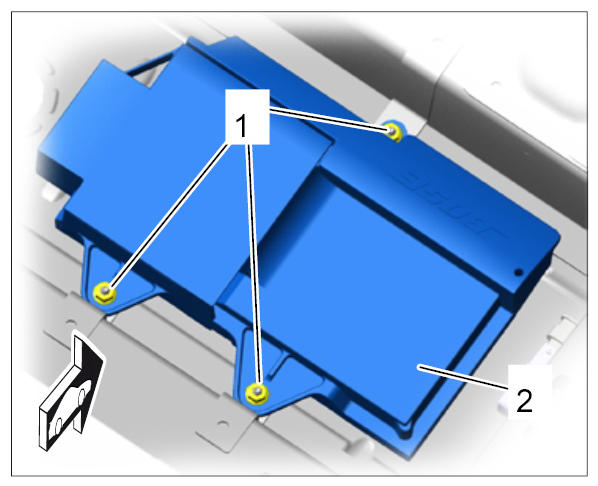

  3. Position the loudspeaker booster -2-  on the body and secure with the fastening nuts -1-  . → Tightening torque: 6 Nm
    Fig 3: Installing Loudspeaker Amplifier
    G09999039

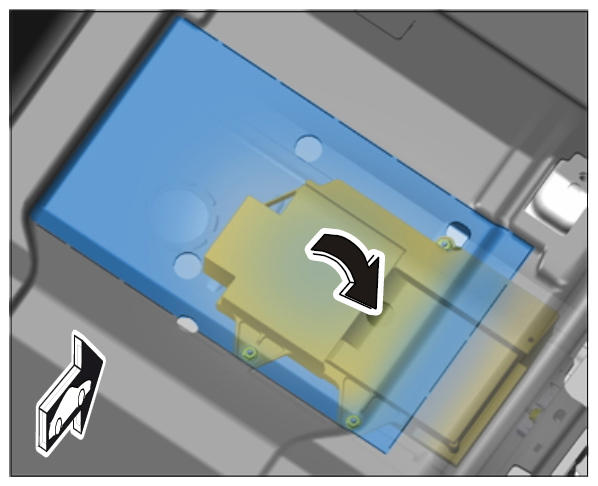

  4. Fold the carpet down -arrow-  and align it.
    Fig 4: Aligning Carpet
    G09999040
