Removing Reversing Camera

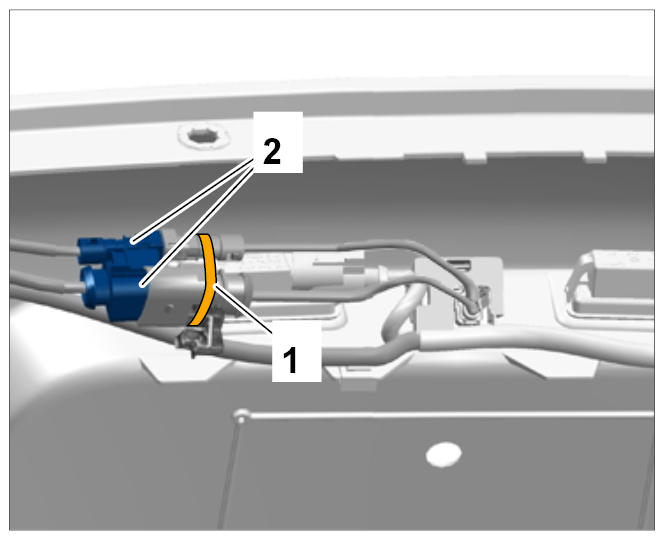

Cut and remove tie-wrap -1- .
Unclip electric plug connections -2- from the holder on the rear apron.

Fig 1: Removing Electric Plug Connections

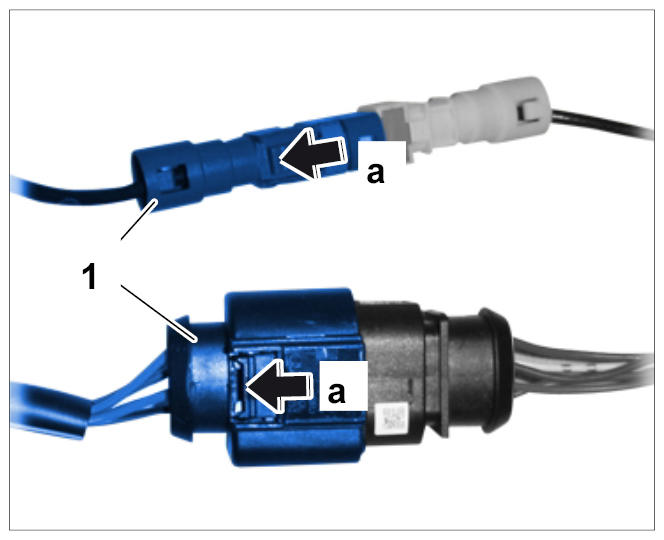

Release electric plug connections -1- (-a- ) and disconnect them.

Fig 2: Disconnecting Electric Plug Connections

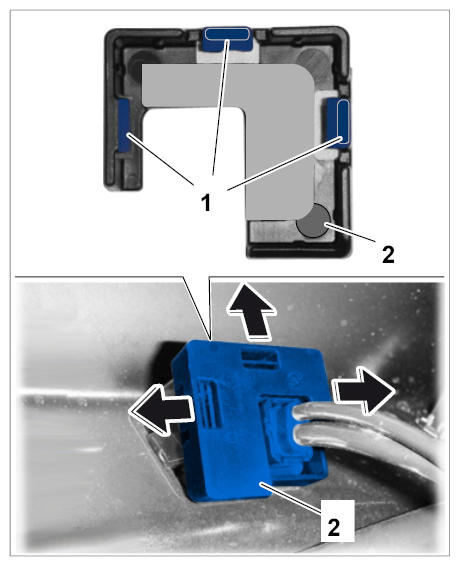

Disengage locks -1- on the cap -2- in direction of arrow and remove cap.

Fig 3: Removing Cap

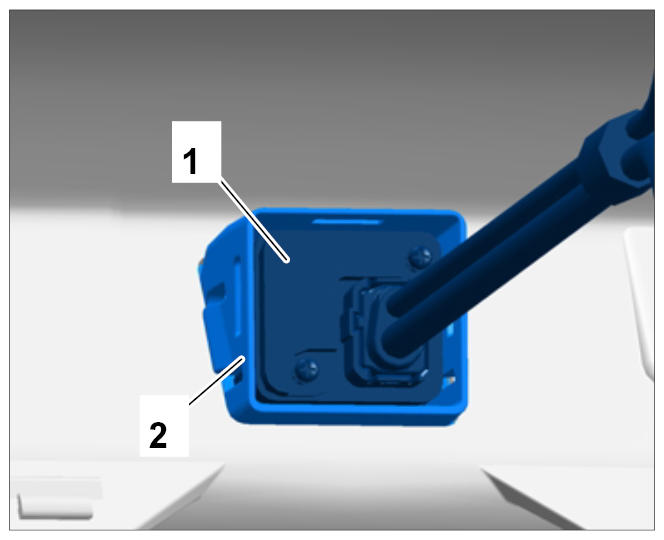

Remove reversing camera -1- from the bracket -2- .

Fig 4: Removing Reversing Camera

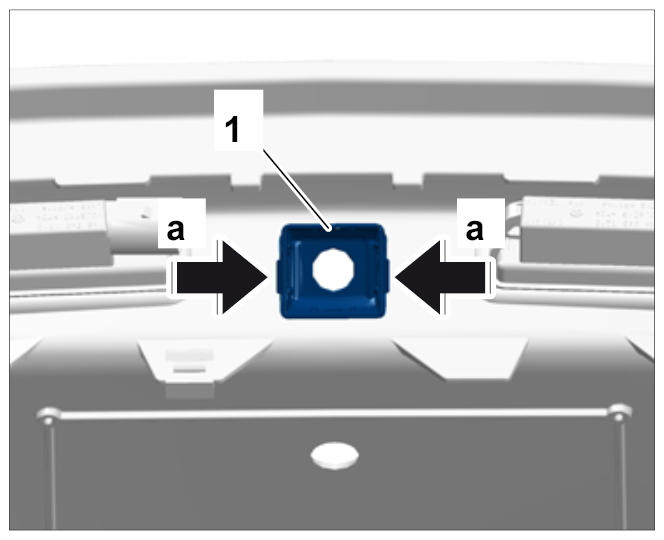

Release bracket -1- if necessary -a- and press it to the rear and out of the rear apron.

Fig 5: Removing Bracket
