Removing Rear Tweeter

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

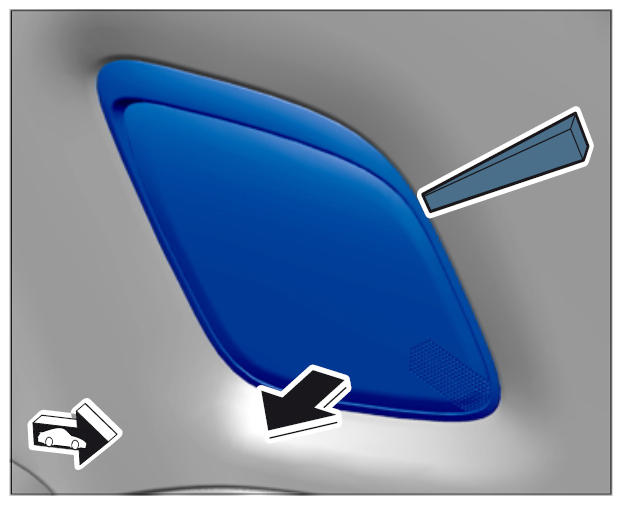

  1. Unclip cover using a plastic wedge -Arrow-  .
    Fig 1: Removing Loudspeaker Cover
    G09999002

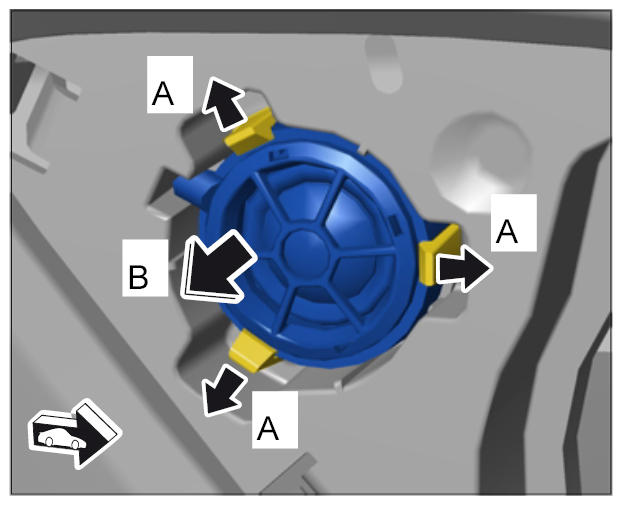

  2. Press the locks outwards -A-  and remove the tweeter -B-  .
    Fig 2: Removing Rear Tweeter
    G09999003

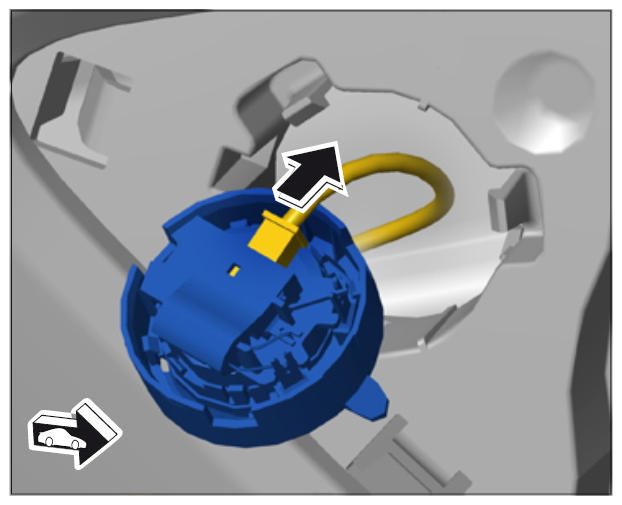

  3. Disconnect electric plug connection on the tweeter -Arrow-  .
    Fig 3: Disconnecting Tweeter Plug Connection
    G09999004
