Removing Rear Mid-Range Loudspeaker

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

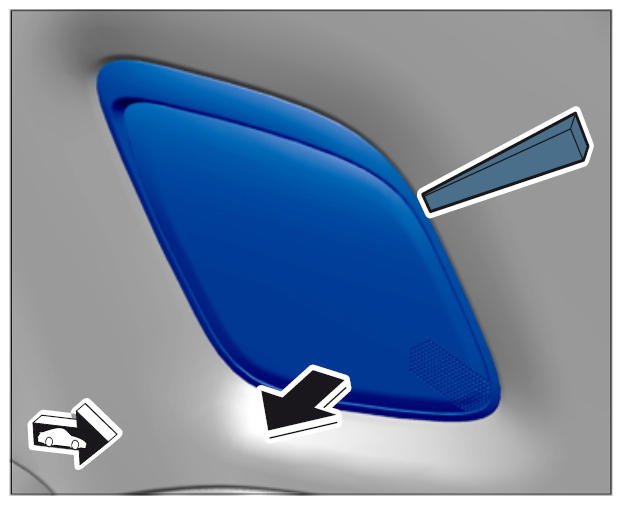

  1. Unclip cover using a plastic wedge -Arrow-  .
    Fig 1: Removing Loudspeaker Cover
    G09998999

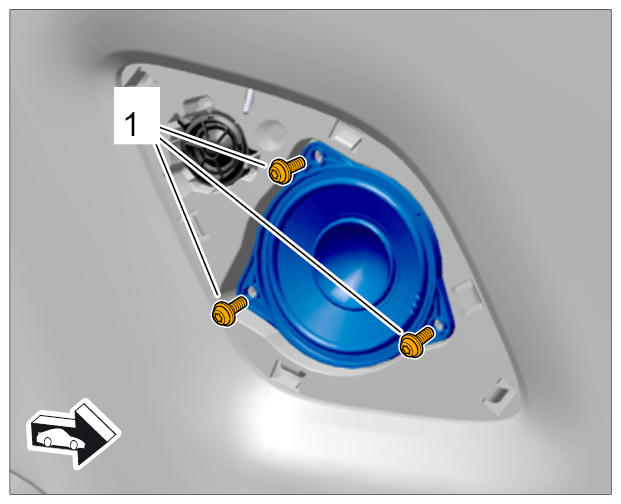

  2. Unscrew the three fastening screws -1-  on the mid-range loudspeaker.
    Fig 2: Removing Rear Mid-Range Loudspeaker
    G09999000

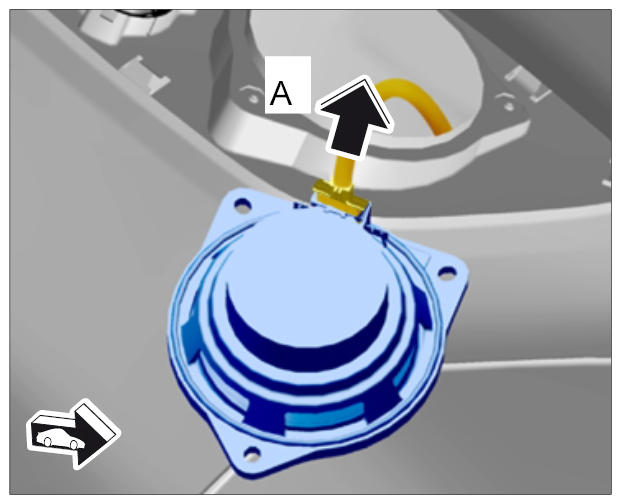

  3. Fold mid-range loudspeaker forward and disconnect electric plug connection -A-  .
    Fig 3: Disconnecting Plug Connection
    G09999001
