Removing Rear Tweeter

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

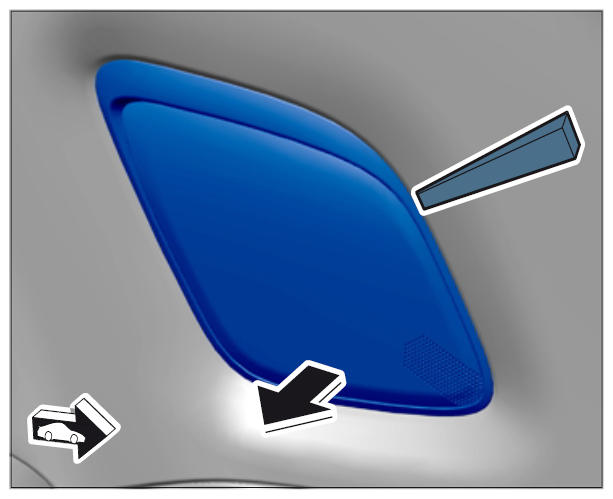

  1. Unclip cover using a plastic wedge -arrow-  .
    Fig 1: Removing Loudspeaker Cover
    G09998995

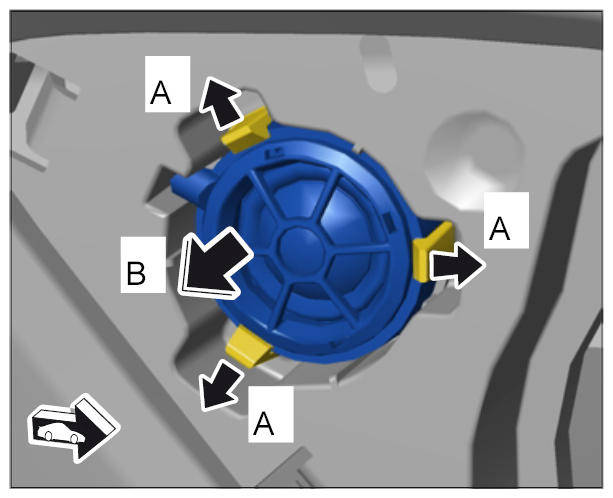

  2. Press the locks outwards -arrows A-  and remove the tweeter -arrow B-  .
    Fig 2: Removing Rear Tweeter
    G09998996

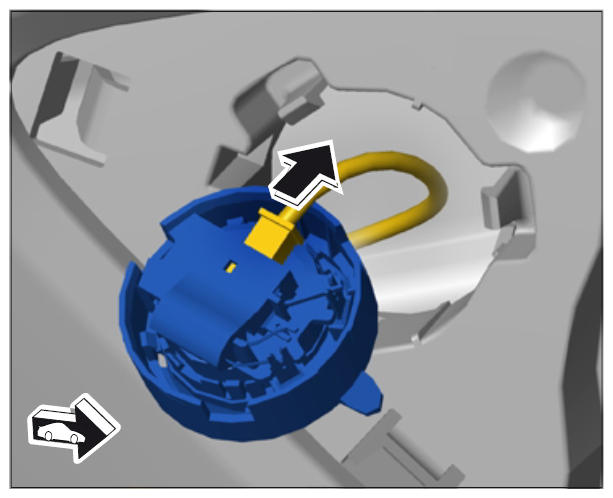

  3. Unplug electric plug connection -arrow-  .
    Fig 3: Removing Tweeter Plug Connection
    G09998997
