Removing Rear Mid-Range Loudspeaker

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

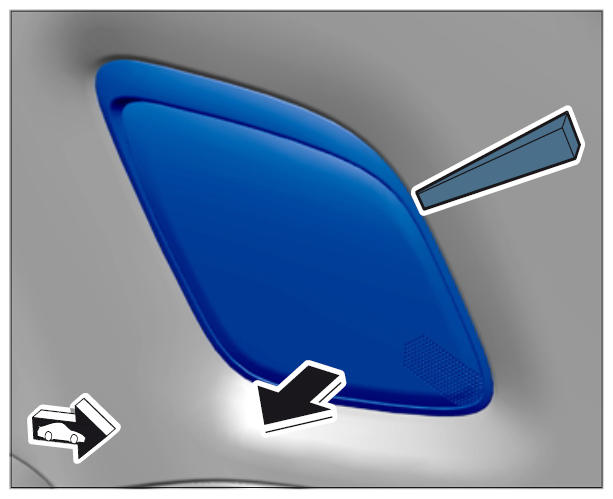

  1. Unclip cover using a plastic wedge -arrow-  .
    Fig 1: Removing Loudspeaker Cover
    G09998992

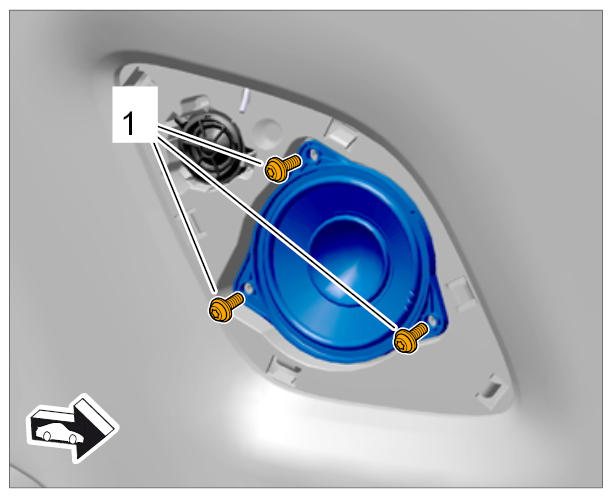

  2. Undo fastening screws -1-  .
    Fig 2: Removing Rear Mid-Range Loudspeaker
    G09998993

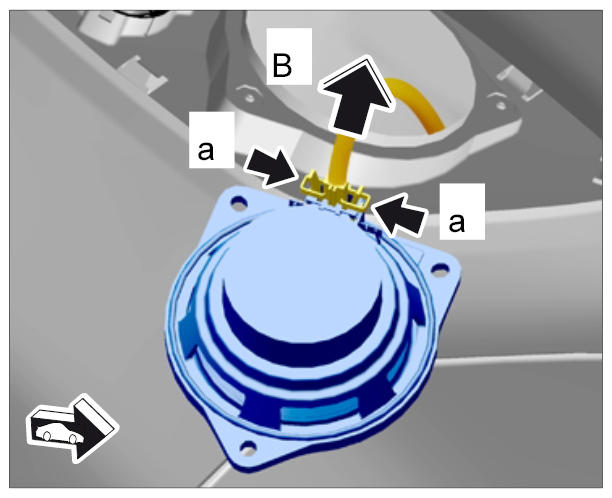

  3. Fold mid-range loudspeaker forward, release electric plug connection -arrows a-  and pull it off -arrow B-  .
    Fig 3: Pulling Mid-Range Loudspeaker Plug Connection
    G09998994
