WM 914119 Removing And Installing Front Loudspeakers (Door) (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition", Gt3)
>>
Removing Front Loudspeakers
>>
Removing Woofer
Removing Woofer
Release electric plug connection for the woofer
-a-
and unplug the connector
-A-
. Unscrew fastening screws
-1-
and remove the woofer.

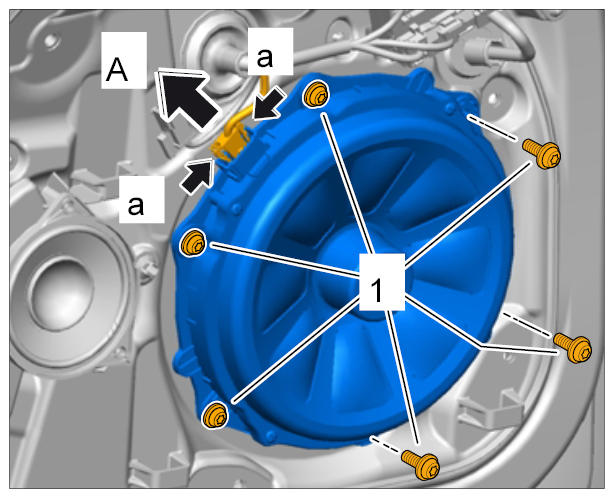

Fig 1: Removing Woofer
