Removing Mid-Range Loudspeaker

  1. Unscrew fastening screws -1-  and remove the mid-range loudspeaker. Release electric plug connection for mid-range loudspeaker -a-  and unplug the connector -A-  .

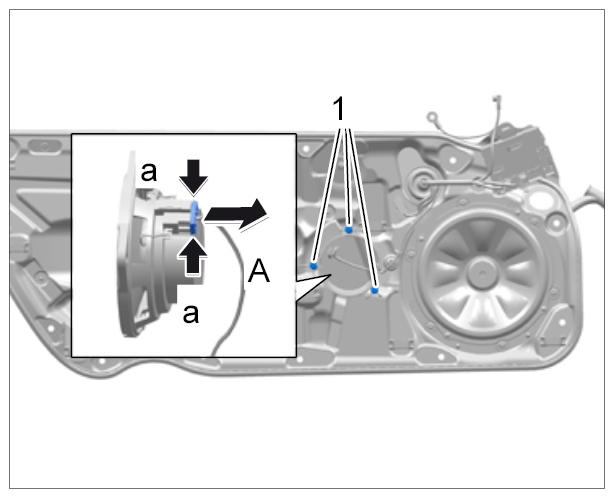

    Fig 1: Removing Mid-Range Loudspeaker
    G09998987
