Installing Woofer

  1. Insert the woofer and secure with the six fastening screws -1-  . Plug in electric plug connection -arrow  until the connector engages securely.

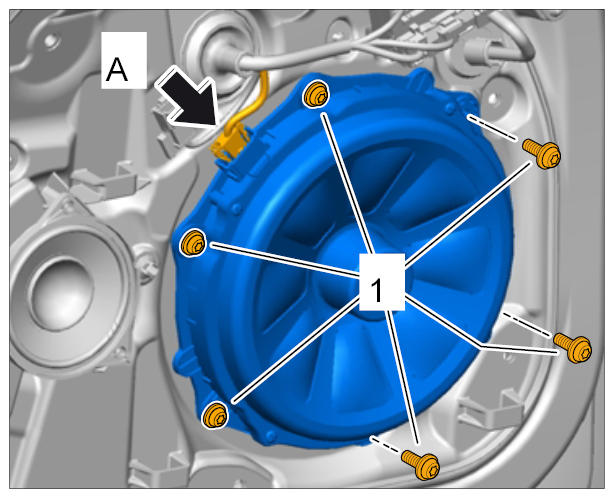

    Fig 1: Installing Woofer
    G09998990
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Threaded connection for woofer 1 Tightening torque 3 Nm (2 ftlb.)
