Installing Mid-Range Loudspeaker

  1. Plug in electric plug connection -arrow-  until the connector engages securely. Insert mid-range loudspeaker (check position of electric plug connection -A-)  and secure with the fastening screws -1-  .

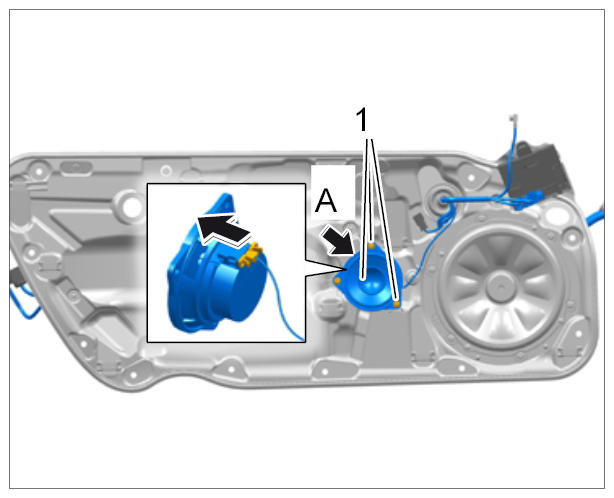

    Fig 1: Installing Mid-Range Loudspeaker
    G09998989
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Threaded connection for mid-range loudspeaker 1 Tightening torque 3 Nm (2 ftlb.)
