Removing The Tweeter (Basic/High End), Left And Right

  1. Release the retaining bar -1- -arrows A-  and remove the tweeter -2-  from the trim panel for the loudspeaker -3- -arrow B-  .

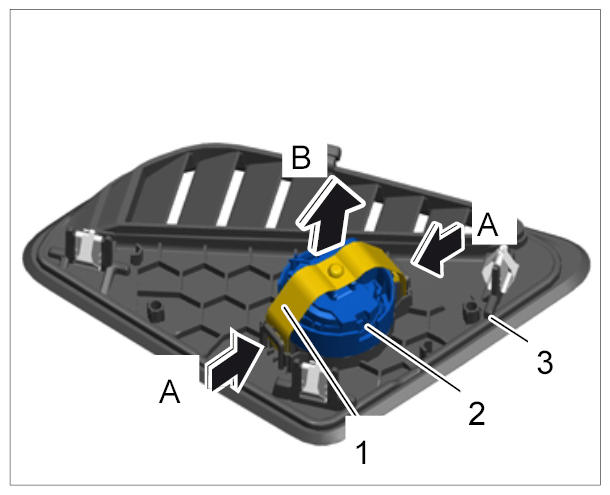

    Fig 1: Removing Tweeter (Basic/High End)
    G09998981
