Removing The Centre Speaker

  1. Unscrew the fastening screws -1-  .
  2. Pull the loudspeaker -2-  out slightly -arrow A-  , release and unplug the electric plug connection -3- -arrows b- -arrow B-  .

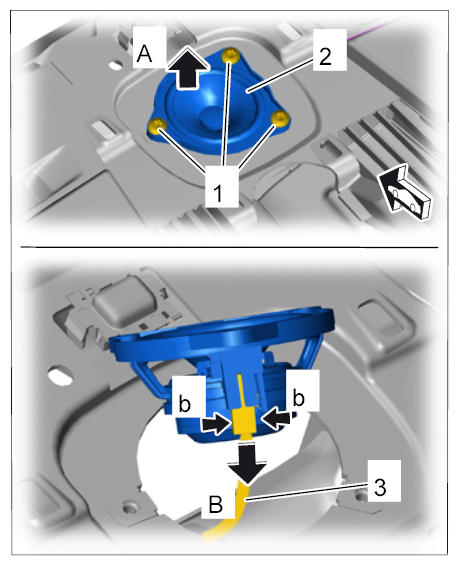

    3. Fig 1: Removing Centre Speaker
    G09998983
