Installing The Centre Speaker

  1. Plug in the electric plug connection -3-  on the loudspeaker -2- -arrow A-  .
  2. Position the loudspeaker -2-  on the switch panel -arrow B-  and secure with the fastening screws -1-  . → Tightening torque: 2.5 Nm

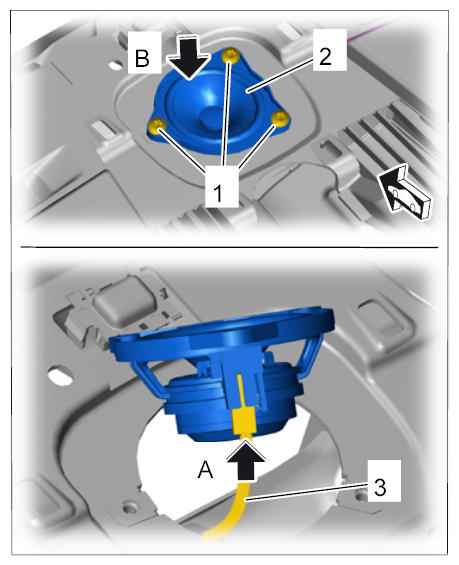

    3. Fig 1: Installing Centre Speaker
    G09998986
