Component Overview

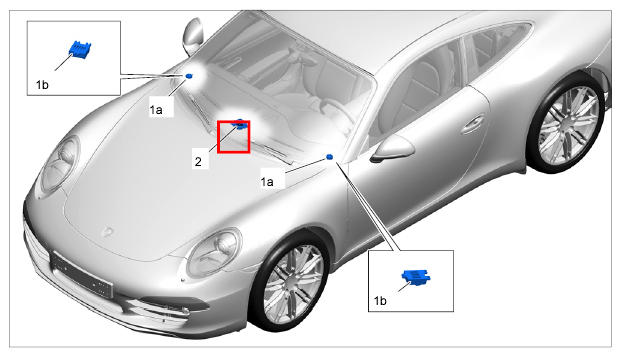

Fig 1: Identifying Front Loudspeaker Position (Switch Panel)
G09998980
  1. 1a  - Tweeter (basic/high end), left and right
  2. 1b  - Tweeter (premium), left and right
  3. 2  - Centre speaker
