Removing SDARS Antenna

  1. Actuate the convertible top button until the convertible-top compartment lid has reached its very top end position.
  2. Detach foam belt -1-  from the convertible-top compartment lid -2-  (-arrow-  ).

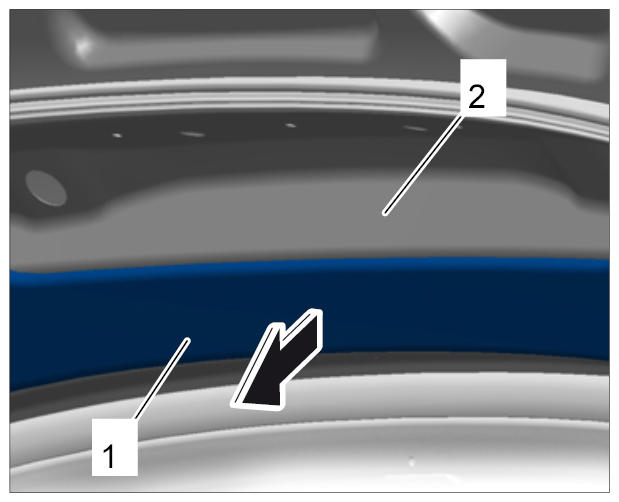

    Fig 1: Detaching Foam Belt
    G09998972
  3. Remove plug connection for SDARS antenna from the body aperture.
    1. 3.1. Release plug connection for SDARS antenna -arrow-  and disconnect plug connection.

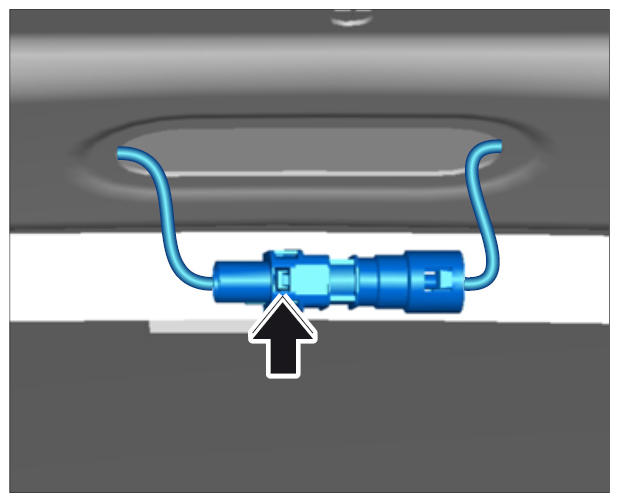

      Fig 2: Locating SDARS Antenna Plug Connection
      G09998973
  4. Unscrew fastening screw -1-  on SDARS antenna -a-  .

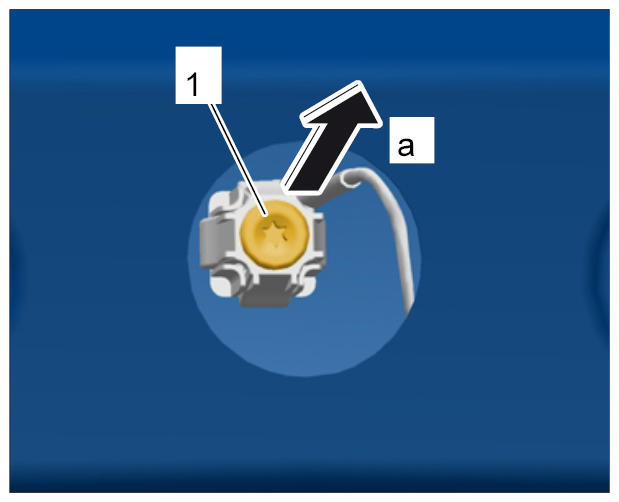

    Fig 3: Removing SDARS Antenna Fastening Screw
    G09998974
  5. Remove SDARS antenna -1-  from the convertible-top compartment lid -arrow-  .

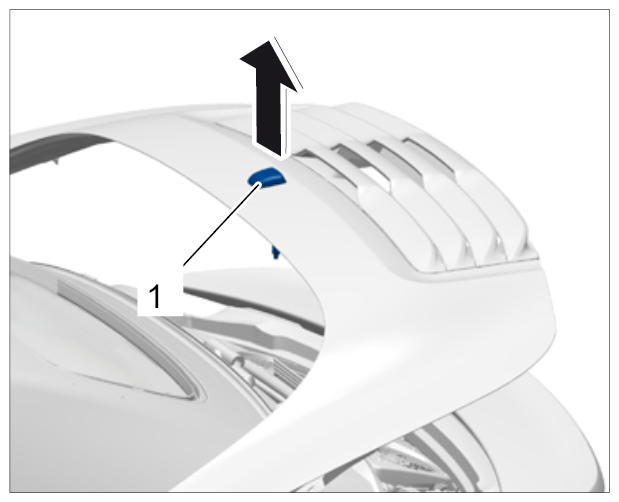

    Fig 4: Removing SDARS Antenna
    G09998975
