Installing Subwoofer
NOTE:
Incorrect handling of components
- Risk of irreparable damage to electric and electronic components
- Reduced functionality
→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.
- Install subwoofer.

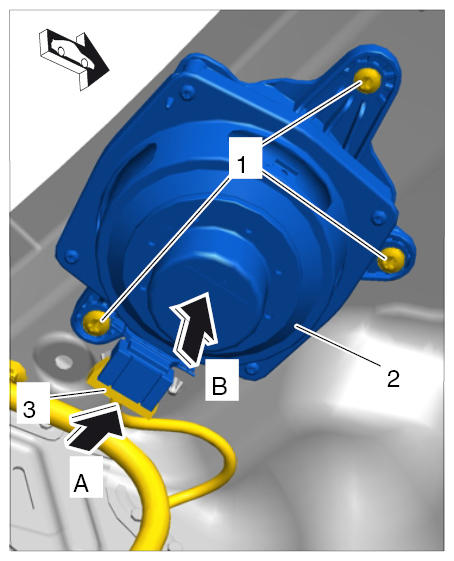

- 1.1. Plug in electric plug connection -3- on the subwoofer -2- (-arrow A- ) until it engages securely.
- 1.2. Position the subwoofer -2- on the dashboard support and press it in slightly -arrow B- until the locking lugs engage.
- 1.3. Tighten fastening screws -1- . → Tightening torque: 3.5 Nm (2.5 ftlb.)

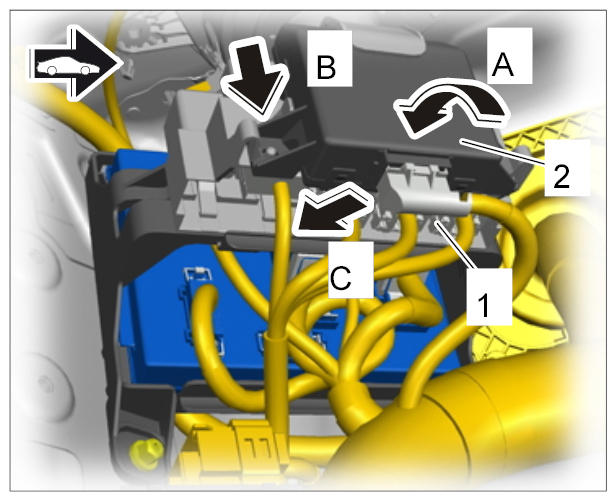

- Bend up relay carrier -1- with gateway control unit -2- (-arrow A- ), guide it in at the top -arrow B- and press it in -arrow C- until it engages securely.
