Installing Antenna Line (GPS Antenna For PCM)

Information

• The new lines will be secured to the fastening points for the old lines.
• The old wire harness remains installed in the vehicle.
• The old wire harness will only be disconnected/unplugged directly at the connected components.

Information

• When installing the wire harness, make sure the insulation of the line is not damaged.

1. Disconnect GPS antenna line.
   1. 1.1. Release plug connection for antenna line -2-  for the GPS antenna -b-  and disconnect it.

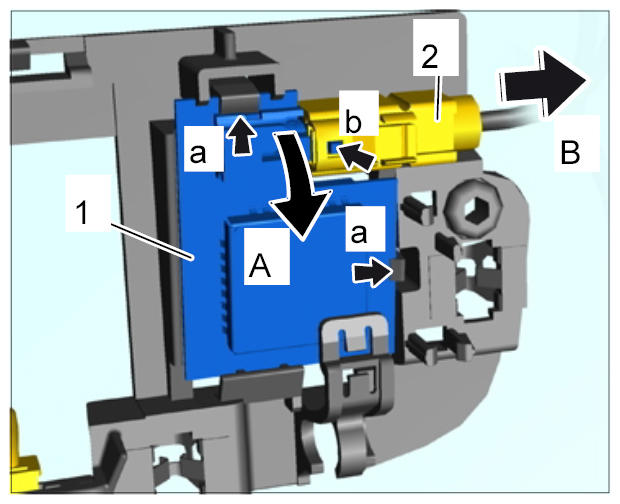

      Fig 1: Disconnecting GPS Antenna


   2. 1.2. Release plug connection for antenna line -1-  at the PCM system -arrow-  and disconnect it.

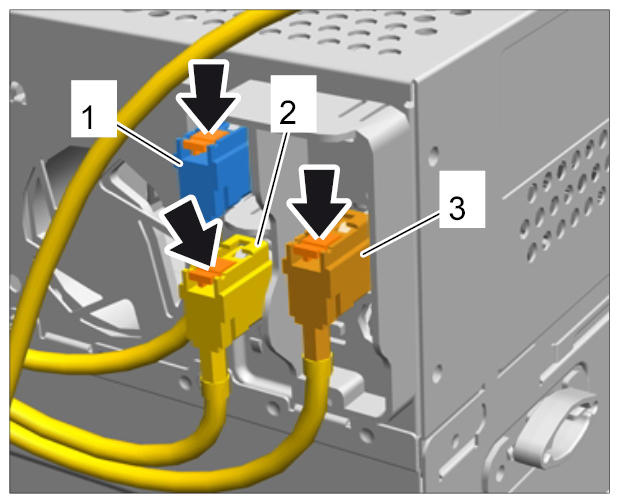

      Fig 2: Disconnecting PCM Antenna Connectors


2. Cut off the connectors on the damaged antenna line, then insulate it and tie it to the main wire harness.
3. Route the new antenna line along the wire harnesses, guide it through the existing cable ducts and tie it to the wire harnesses using tie-wraps.
4. Plug in new GPS antenna line.
   1. 4.1. Connect plug connection for antenna line -2-  for the GPS antenna -C-  until the connector engages securely.

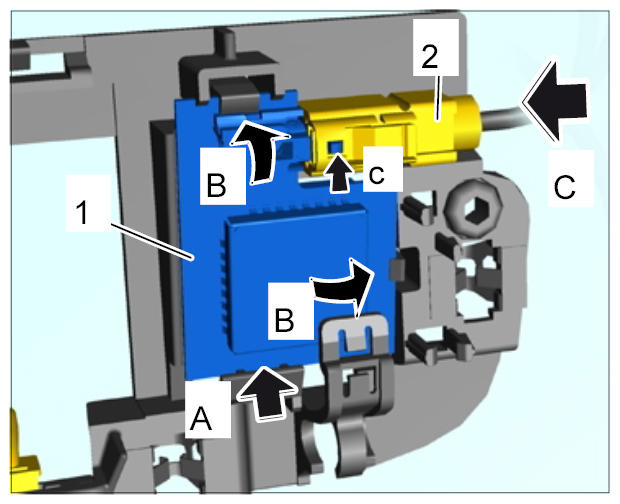

      Fig 3: Connecting GPS Antenna


   2. 4.2. Connect plug connection for antenna line -1-  at the PCM system -arrow-  until the connector engages securely.

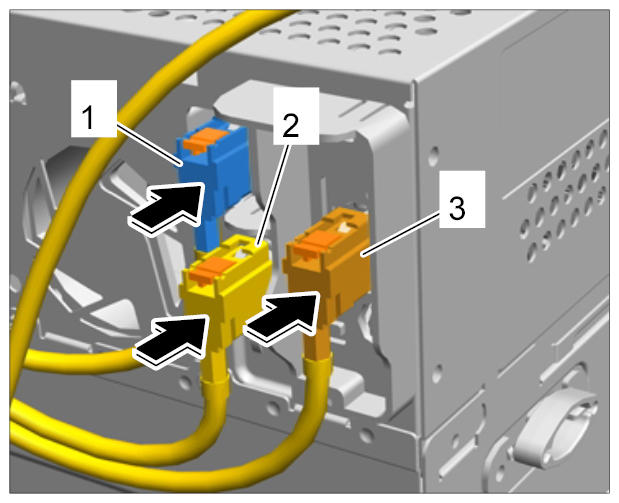

      Fig 4: Connecting PCM Antenna Connector
