Removing Car Radio

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

Information

Protect center console against scratching by using a suitable cover.

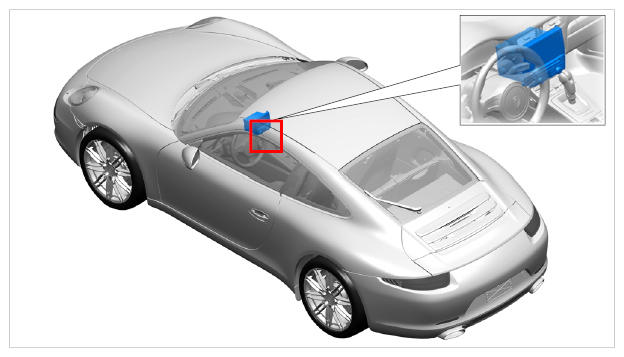

Fig 1: Identifying Car Radio Position

1. Unscrew screws -1-  and pull the car radio out towards the front -arrow-  .

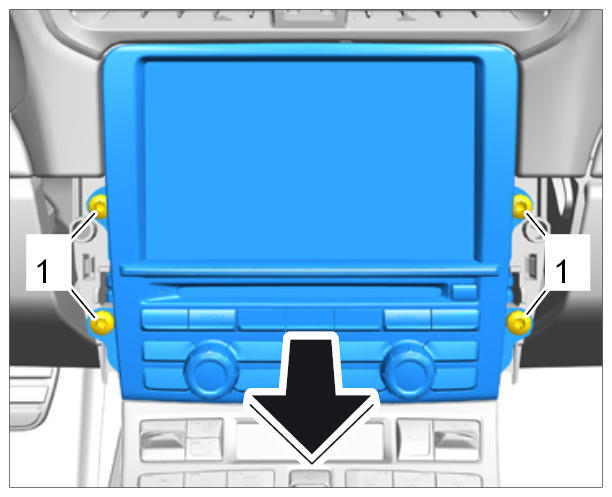

   Fig 2: Removing Car Radio


2. Release and unplug antenna connectors -arrows-  .

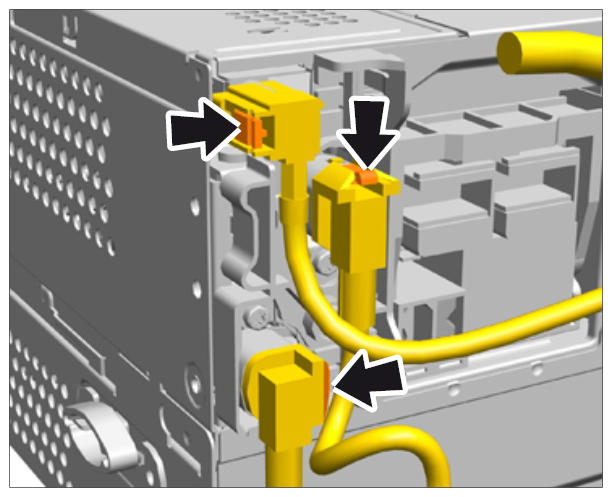

   Fig 3: Disconnecting Antenna Connectors


3. Swivel out the securing bolt -arrow-  and disconnect combination plug.

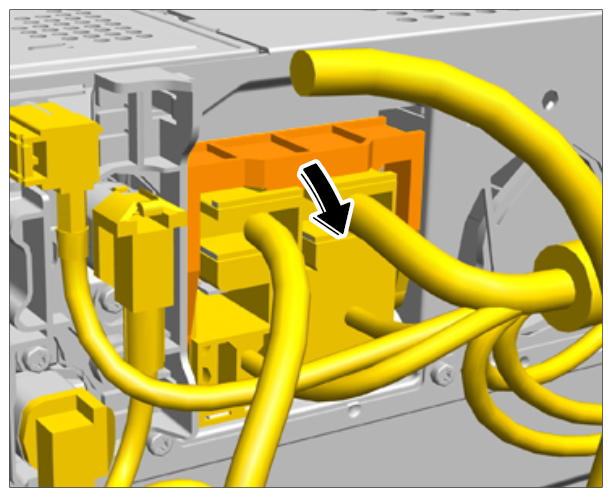

   Fig 4: Removing Combination Plug


4. Release and unplug antenna connectors -arrows-  .

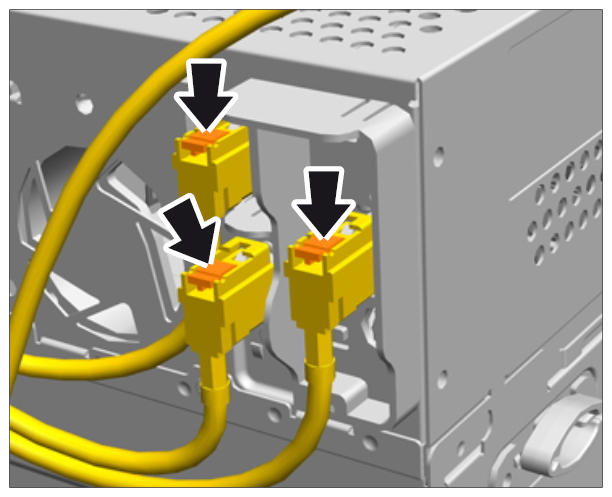

   Fig 5: Disconnecting Antenna Connectors


5. Remove car radio.
