Installing Car Radio

Information

Ignition switched off and ignition key removed before disconnecting or connecting load.

1. Plug antenna connectors into the respective coded bushings -arrows-  until the connectors engage securely.

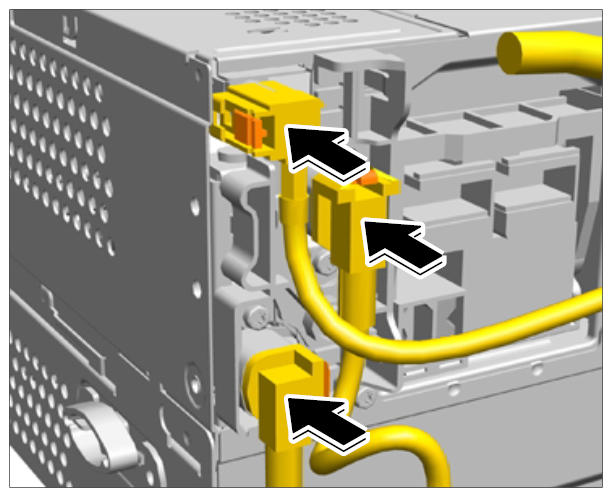

   Fig 1: Plugging In Antenna Connectors


2. Plug in combination plug and press down the swivel bolt -arrow-  until it engages securely.

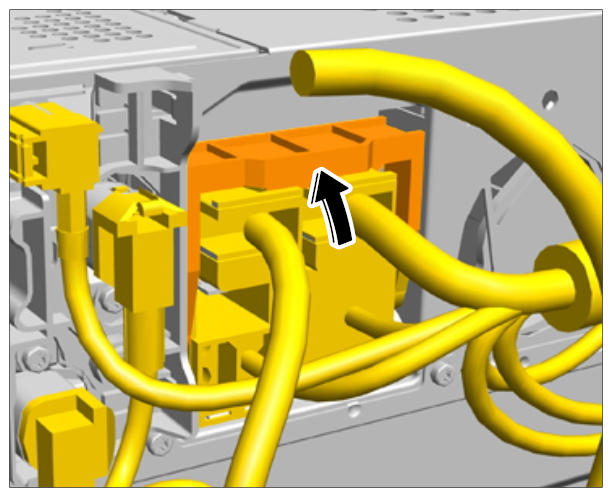

   Fig 2: Plugging In Combination Plug


3. Plug antenna connectors into the respective colour-coded bushings -arrows-  until the connectors engage securely.

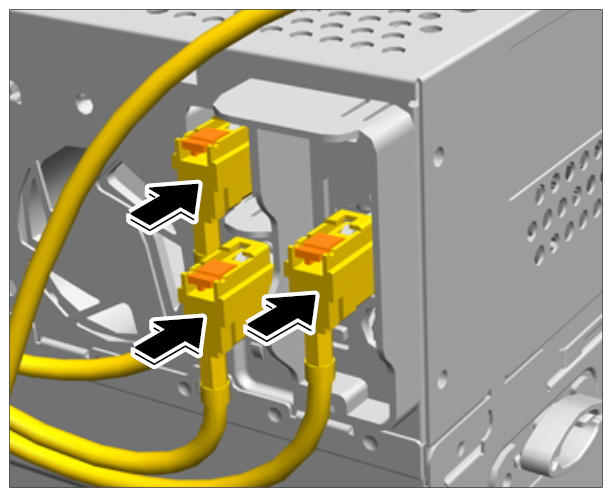

   Fig 3: Plugging In Antenna Connectors


4. Carefully slide the car radio into the slot -arrow-  and make sure  that the lines are not crushed.
   1. 4.1. Secure the car radio with the four fastening screws -1-  .

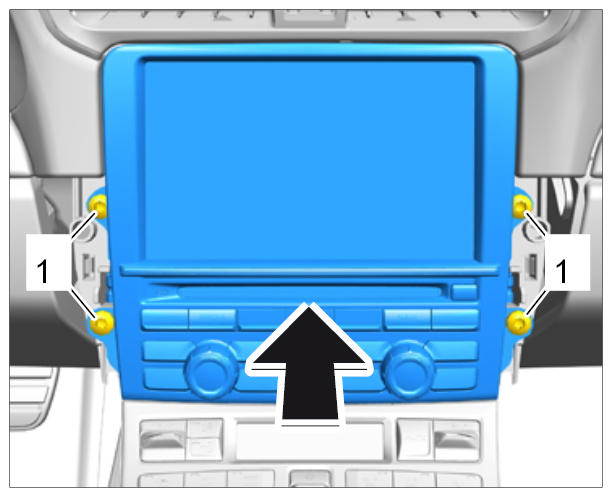

      Fig 4: Securing Car Radio



      Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
      Threaded joint for car radio		Tightening torque	5.6 Nm (4.5 ftlb.)
