Removing Multimedia Interface

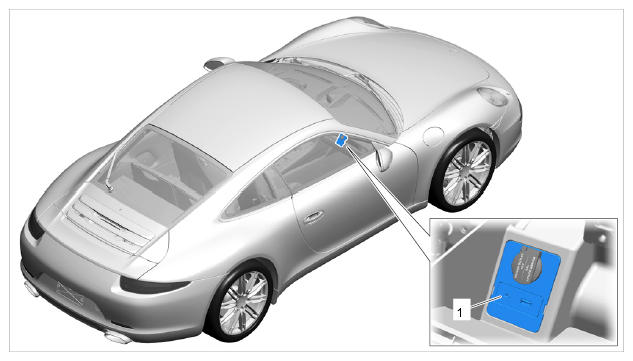

Fig 1: Identifying Multimedia Interface Position

Insert screwdriver at an angle into the notch -arrow- and turn to the left to lift out the multimedia interface.

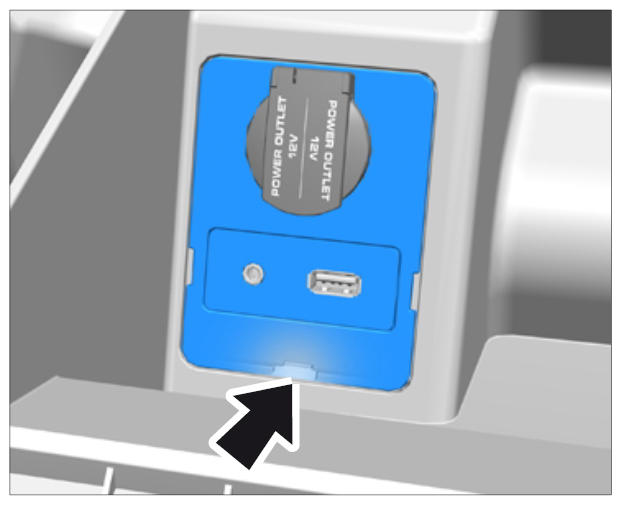

Fig 2: Locating Multimedia Interface
Unplug electric plug connections of the multimedia interface.
1. 2.1. Cut tie-wrap -A- .
2. 2.2. Disconnect electric plug connection for 12V supply -B- .
3. 2.3. Release mounting of USB interface -C- around the locking lug and disconnect the USB interface.
4. 2.4. Release mounting of the jack socket -D- around the locking lug and disconnect the jack socket.

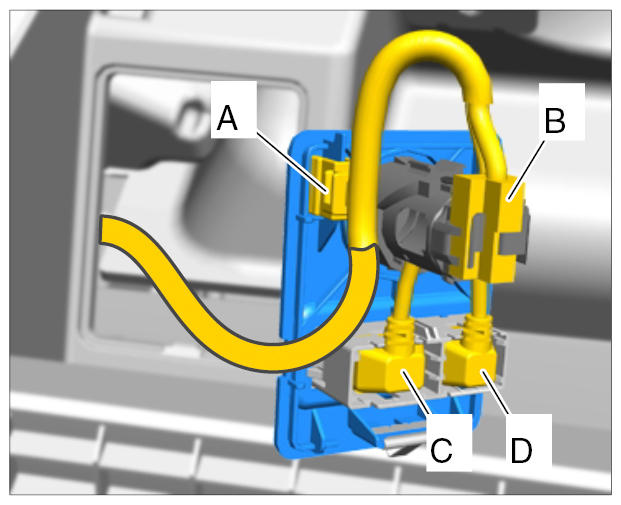

  Fig 3: Disconnecting Electric Plug Connections
